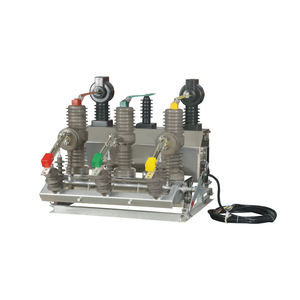

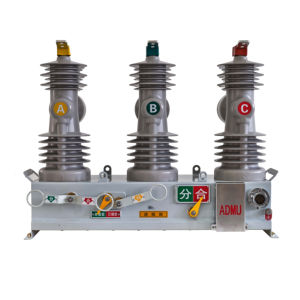

Overview of High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker

High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker is a type of circuit breaker where the arc quenching medium is a high vacuum. Unlike older breakers that used air, oil, or SF6 gas to extinguish the electrical arc, a VCB utilizes the superior dielectric properties of a vacuum to rapidly extinguish the arc when the contacts separate, thereby interrupting the current flow and protecting the electrical system.

Characteristics of High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker

Strong arc extinguishing ability: using vacuum medium to quickly extinguish the arc, with high breaking ability.

Safe and environmentally friendly: No fire or explosion risks, no greenhouse gas emissions.

Easy maintenance: Vacuum bubbles are maintenance free, with a long overall maintenance cycle and low workload.

Long lifespan: Both mechanical and electrical lifespan are very long.

Small size: Compact structure, saving space.”

Specifications of High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker

The High Efficiency ZW32-40.5 Outdoor High-Voltage Vacuum Breaker handles demanding power circulation. This breaker runs at 40.5 kilovolts. Its rated existing reaches 2000 amperes. Short-circuit splitting capacity is 31.5 kiloamperes. This makes certain reputable fault disturbance.

The breaker makes use of a vacuum interrupter chamber. This chamber snuffs out the arc properly. It supplies consistent performance. The breaker meets IEC 62271-100 criteria. It additionally meets GB 1984 requirements. These verify its dependability and safety and security.

The insulation system is robust. It uses dry-type insulation for the primary circuit. Porcelain or composite insulators offer external defense. The breaker endures high lightning impulse voltages. It deals with 185 kilovolts height. Power frequency hold up against voltage is 95 kilovolts. This insulation is trustworthy.

The breaker deals with extreme problems. It operates in temperature levels from -40 ° C to +55 ° C. It performs well in high humidity. It resists salt spray and pollution. Installation is feasible as much as 4000 meters altitude. This makes it ideal for harsh environments.

Mechanical endurance is high. The breaker attains 10,000 mechanical operations. Its maintenance needs are reduced. This decreases downtime and costs. The breaker uses versatile control. It works with manual or motorized spring operating mechanisms. Electric push-button control is also readily available. Numerous protection systems incorporate quickly. This includes overcurrent and reclosing functions.

The breaker makes use of SF6 gas for insulation. Its leakage price is really low. This makes certain environmental security. The compact style saves area. Setup is simple. The breaker connects directly to overhead lines. It fits usual pole frameworks. Its robust building guarantees lengthy service life. It gives dependable circuit security for energy grids and commercial networks.

Applications of High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker

The ZW32-40.5 Outdoor High-Voltage Air Conditioner Vacuum cleaner Circuit Breaker secures crucial power systems. It handles 40.5 kilovolts securely. This breaker quits power flow throughout mistakes or for maintenance. Its vacuum modern technology dependably disrupts high currents without oil or gas. This makes it cleaner and requires much less maintenance.

Power distribution networks rely upon this breaker. It secures transformers, substations, and transmission lines. The breaker isolates problem areas promptly. This stops small concerns from causing large power outages. Its style functions well outdoors. Rainfall, dirt, and temperature level modifications do not quit it. This durability is crucial for remote places.

Renewable energy websites use this breaker as well. It connects solar ranches and wind parks to the grid. The breaker takes care of the power flow. It takes care of the switching required for these variable energy sources. Regular procedures are no worry. The vacuum interrupter lasts a long time.

Industrial plants require reputable power security. This breaker protects large manufacturing facilities and mines. It shields costly tools from electrical damages. Quick mistake clearing up is crucial below. Production downtime prices money. The breaker’s speed lessens disruptions.

City infrastructure benefits from this technology. It safeguards water treatment plants and medical facilities. These places require continuous, secure power. The breaker helps preserve important services. Its reliability is crucial for metropolitan grids.

Modern variations frequently consist of wise attributes. Remote and tracking are feasible. Operators see the breaker’s standing conveniently. They can operate it from a distance. This enhances safety and security and performance. It decreases the requirement for on-site sees.

The ZW32-40.5 gives strong, reputable changing. It keeps power flowing securely across several important applications. Its robust style takes care of tough problems every day.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of High Performance ZW32-40.5 Outdoor High-Voltage Alternating-Current Vacuum Circuit Breaker

Here are five common questions about the ZW32-40.5 Outdoor High-Voltage AC Vacuum Circuit Breaker:

What does the ZW32-40.5 Vacuum Circuit Breaker actually do? This breaker protects electrical systems. It stops dangerous overloads and short circuits fast. It interrupts high current flowing through power lines. This prevents damage to expensive equipment. It keeps the electricity grid stable and safe.

Why use vacuum technology inside this breaker? Vacuum interrupters are the core part. They extinguish the electrical arc inside a vacuum. This vacuum has great insulation properties. It stops the arc quickly and reliably. Vacuum interrupters need little maintenance. They last a long time. They handle many switching operations without trouble.

Can this breaker handle being outdoors all the time? Yes. It is built specifically for outdoor use. The enclosure is strong steel. It protects against rain, snow, dust, and extreme temperatures. Special seals and coatings prevent corrosion. It operates reliably in bad weather conditions. It sits on poles or structures easily.

How much maintenance does this breaker require? Very little. The vacuum interrupters are sealed for life. There are no oil or gas systems needing replacement. Routine checks are simple. Technicians mainly look for physical damage. They check connections are tight. They ensure the mechanism operates freely. This saves time and money.

Is the ZW32-40.5 breaker safe to use? Yes. Safety is critical. It meets strict international standards. It undergoes rigorous testing. Tests confirm its breaking capacity and insulation strength. It has reliable mechanical interlocks. These prevent unsafe operation. Proper installation and grounding are always essential.
