Air Source Heat Pump Explained: Core Technology, Efficiency Advantages, and 2026 Market Trends

1. Why Air Source Heat Pumps Are Leading the Global Energy Transition

As countries accelerate toward carbon neutrality, the Air Source Heat Pump (ASHP) has emerged as a key solution for replacing fossil-fuel-based heating systems.

Unlike traditional systems, ASHPs:

• Extract heat from ambient air
• Deliver 3–5 times more energy than they consume
• Provide heating, cooling, and hot water in one system

👉 This makes them highly attractive in Europe, North America, and the Middle East.

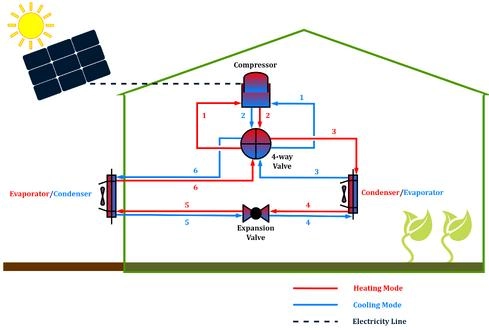

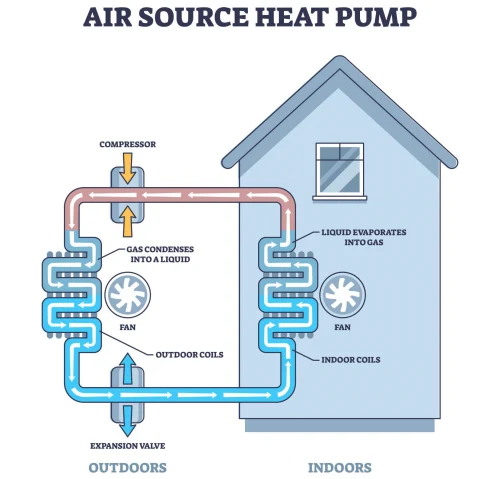

2. How an Air Source Heat Pump Works (Technical Breakdown)

Air source heat pumps operate based on the reverse Carnot cycle using a vapor compression system.

Key Components:

Component	Function
Compressor	Increases refrigerant pressure and temperature
Evaporator	Absorbs heat from outdoor air
Condenser	Releases heat indoors
Expansion Valve	Controls refrigerant flow and pressure

Working Process:

1. Heat is absorbed from outdoor air via the evaporator
2. Refrigerant evaporates and enters the compressor
3. Temperature rises after compression
4. Heat is released indoors through the condenser

👉 Key insight: Heat pumps transfer heat instead of generating it.

3. Key Performance Indicators (KPI) You Must Understand

3.1 COP (Coefficient of Performance)

Condition	COP Range
Standard (7°C)	3.5 – 5.0
Low Temp (-15°C)	2.0 – 3.0

3.2 SCOP (Seasonal Efficiency)

More accurate for annual performance, widely used in Europe.

3.3 EER (Cooling Efficiency)

Used to evaluate cooling performance.

4. Heat Pump vs Traditional Heating Systems

Factor	Heat Pump	Gas Boiler	Electric Heater
Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐	⭐
Carbon Emissions	Low	Medium	High
Operating Cost	Low	Medium	High
Safety	High	Medium	High

👉 Conclusion: Heat pumps offer the best long-term ROI.

5. 2026 Technology Trends in Air Source Heat Pumps

5.1 Ultra-Low Temperature Operation (-30°C)

Advanced technologies include:

• Enhanced Vapor Injection (EVI)
• Inverter compressors
• Smart defrost systems

👉 Enable stable operation in extreme climates.

5.2 R290 Refrigerant (Future Standard)

Refrigerant	GWP	Trend
R410A	High	Phasing out
R32	Medium	Transitional
R290	Ultra-low	Future mainstream

5.3 Smart Control & AI Optimization

• IoT-based monitoring
• AI-driven energy optimization
• Predictive maintenance

6. Application Scenarios

✔ Residential heating (EU & North America)
✔ Commercial buildings (hotels, offices)
✔ Industrial hot water
✔ Agricultural greenhouses

👉 Especially effective for greenhouse temperature control systems

7. Selection & Procurement Tips (For Importers & Distributors)

Parameter	Recommendation
Ambient Temperature	Check low-temp performance
Heating Load	Accurate calculation required
Power Supply	Prefer 3-phase systems
Compressor Brand	Panasonic / Mitsubishi recommended
Certification	CE, ERP, KEYMARK

8. Conclusion: Why You Should Invest in Heat Pumps Now

Air source heat pumps are not just HVAC equipment — they are part of a future energy ecosystem:

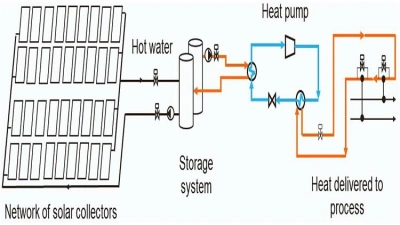

• Integrated with solar PV
• Compatible with energy storage systems
• Connected to smart grids

👉 The next 3–5 years will see explosive growth in global demand.
