Dry Type Transformer Types: The Ultimate Guide for 2024

Introduction to Dry Type Transformers

Dry type transformers are essential electrical devices that provide safe, efficient power distribution without liquid cooling. Unlike oil-filled transformers, they use air or solid insulation, making them eco-friendly, low-maintenance, and ideal for indoor applications. With growing demand for sustainable and fire-safe electrical solutions, dry type transformers are becoming the preferred choice across industries.

Key Advantages of Dry Type Transformers

Why are dry type transformers gaining popularity? Here’s why:
✔ No Fire Hazard – No flammable oil, reducing explosion risks.
✔ Low Maintenance – No oil leaks or filtration needed.
✔ Eco-Friendly – Free from toxic liquids, supporting green initiatives.
✔ Compact & Versatile – Suitable for tight spaces like buildings, hospitals, and data centers.

Different Types of Dry Type Transformers

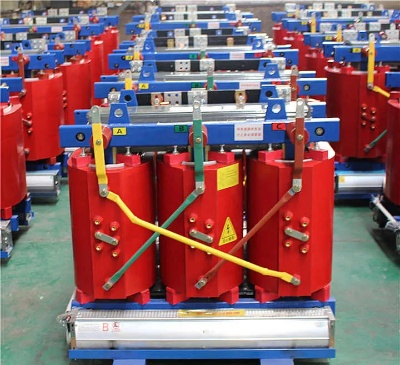

1. Cast Resin Dry Type Transformers (CRT)

• Best for: Harsh environments (high humidity, dust, chemicals).
• Features: Epoxy resin encapsulation prevents moisture damage.
• Applications: Offshore wind farms, mining, industrial plants.

2. Vacuum Pressure Impregnated (VPI) Transformers

• Best for: High-load commercial & utility use.
• Features: Insulated with varnish under vacuum pressure for durability.
• Applications: Hospitals, data centers, high-rise buildings.

3. Open Wound (Ventilated) Dry Type Transformers

• Best for: Cost-effective general-purpose power distribution.
• Features: Air-cooled, no enclosure, requires clean environments.
• Applications: Factories, warehouses, renewable energy plants.

4. Encapsulated (Sealed) Dry Type Transformers

• Best for: Extreme conditions (corrosive, explosive atmospheres).
• Features: Fully sealed to block dust and moisture.
• Applications: Chemical plants, marine, oil & gas industries.

2024 Trends in Dry Type Transformers

• Smart Monitoring – IoT-enabled transformers for real-time diagnostics.
• Energy Efficiency – Compliance with DOE 2016 & IEC 60076 standards.
• Renewable Integration – Solar/wind farms adopt dry type transformers for sustainability.
• Hybrid Designs – Combining air & solid insulation for better performance.

How to Choose the Right Dry Type Transformer

Consider these factors:
🔹 Load Capacity – Match your power requirements (kVA rating).
🔹 Cooling Method – Natural air (AN) or forced air (AF) cooling.
🔹 Environmental Conditions – Humidity, dust, and temperature ratings.
🔹 Certifications – UL, IEC, or IEEE compliance for safety.

Conclusion

Dry type transformers offer safer, cleaner, and more efficient power distribution compared to oil-filled alternatives. With advancements in smart technology and eco-friendly designs, they are the future of electrical infrastructure.
