Siemens Current Transformers: Precision Measurement for Modern Power Systems

Introduction to Siemens Current Transformers

Siemens current transformers (CTs) are essential components in electrical power systems, providing accurate current measurement for protection, monitoring, and control. As industries embrace smart grids, renewable energy, and Industry 4.0, the demand for reliable and high-performance current transformers continues to grow.

Siemens, a global leader in electrical engineering, offers a wide range of CTs designed for various applications, from energy distribution to industrial automation. In this article, we explore how Siemens current transformers work, their key features, applications, and why they are a top choice for engineers worldwide.

How Siemens Current Transformers Work

Current transformers reduce high alternating currents (AC) to a standardized, measurable level, typically 1A or 5A, for safe monitoring by instruments and protective relays. Siemens CTs operate on the principle of electromagnetic induction, ensuring high accuracy and reliability.

Key characteristics of Siemens current transformers include:

• High Accuracy Class (0.1 to 1.0): Ensures precise measurement for metering and protection.
• Wide Current Range: Supports applications from low to extremely high currents.
• Robust Construction: Designed for harsh environments, including high-voltage substations.
• Advanced Insulation: Minimizes energy loss and enhances safety.

Types of Siemens Current Transformers

Siemens offers multiple CT designs to meet diverse industry needs:

1. Low-Voltage Current Transformers

Used in commercial and industrial power distribution, these CTs provide accurate current measurement for energy monitoring and load management.

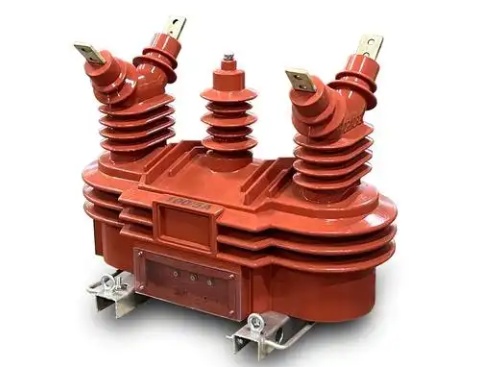

2. Medium & High-Voltage Current Transformers

Ideal for substations and transmission networks, these CTs ensure reliable protection and control in high-voltage applications.

3. Rogowski Coil Sensors

Flexible, air-core CTs used for temporary measurements and smart grid applications, offering high dynamic range and easy installation.

4. Split-Core Current Transformers

Designed for retrofit installations without disconnecting cables, making them perfect for energy audits and IoT-based monitoring.

5. Combined Instrument Transformers

Integrate current and voltage measurement in a single unit, reducing space and cost in switchgear and power plants.

Key Applications of Siemens Current Transformers

Siemens CTs play a crucial role in:

• Energy Metering: Billing and power quality analysis.
• Protection Relaying: Detecting faults and preventing equipment damage.
• Renewable Energy Systems: Monitoring solar and wind power generation.
• Industrial Automation: Ensuring safe and efficient motor control.
• Smart Grids: Enabling real-time data for grid optimization.

Why Choose Siemens Current Transformers?

Siemens stands out due to:
✔ Global Reliability: Trusted by utilities and industries worldwide.
✔ Innovative Technology: Advanced materials and digital-ready designs.
✔ Compliance with Standards: Meets IEC, IEEE, and ANSI requirements.
✔ Custom Solutions: Tailored designs for specialized applications.

Future Trends: Digitalization & Smart CTs

With the rise of digital substations and IoT, Siemens is pioneering smart current transformers with:

• Built-in Sensors: For real-time diagnostics.
• Ethernet Connectivity: Enabling Industry 4.0 integration.
• AI-Powered Analytics: Predictive maintenance and fault detection.

Conclusion

Siemens current transformers are indispensable for safe, efficient, and intelligent power systems. Whether for traditional grid infrastructure or next-gen smart applications, Siemens CTs deliver unmatched precision and durability.
