The Ultimate Guide to 1000kVA Hermetically Sealed Oil Immersed Transformer

Abstract: Faced with the increasing demand for electricity and the pressure of energy conservation and environmental protection, equipment upgrading is imperative. This article will provide you with a clear guide on why choosing a 1000kVA fully sealed oil immersed transformer in 2024 is a wise decision, and look forward to its future development trends.

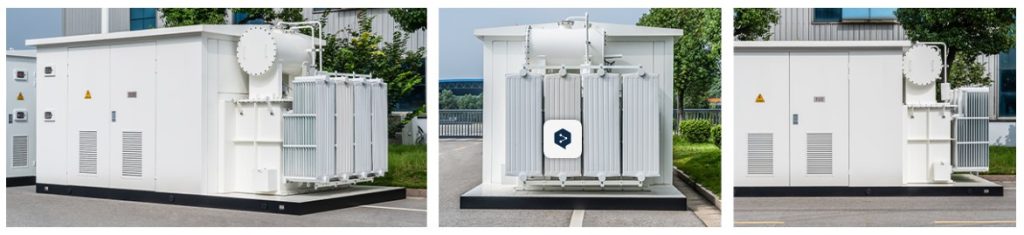

oil immersed distribution transformer

1.The call of the times: the urgency of upgrading oil immersed transformer

Many in-service power transformers have been in operation for decades. They may have low energy efficiency, frequent maintenance, and potential safety hazards. With the acceleration of digitalization and electrification, the requirements for power supply quality and reliability have reached unprecedented heights. Therefore, equipment upgrading is not only necessary, but also urgent.

2.Five reasons to choose a 1000kVA sealed oil immersed transformer

When considering an upgrade, a 1000kVA fully sealed oil immersed transformer should be at the top of your list. Here are five strong reasons:

2.1 Reason 1: Oil immersed transformer unparalleled energy efficiency and energy-saving performance

Modern sealed transformers use high-quality cold-rolled silicon steel sheets and low loss materials such as amorphous alloys. Combined with optimized design, its no-load loss and load loss are extremely low. This means that over its decades long lifespan, it can save you a huge amount of electricity expenses with a very high return on investment.

2.2 Reason 2: Strong safety and fire resistance performance

Transformer oil has a high ignition point and is classified as a non flammable liquid. The fully sealed structure further prevents oil from coming into contact with air, greatly reducing the risk of fire. At the same time, the sturdy casing can effectively resist internal fault arcs and protect the safety of surrounding equipment and personnel.

2.3 Reason Three: Excellent Environmental Adaptability

Whether your project is located in a damp coastal area or a windy inland area, the sealed design can protect the internal core components from erosion. It does not require a respirator and is not afraid of moisture condensation, truly achieving a worry free experience of “forgetting after installation”.

2.4 Reason Four: Aligning with the Trends of Smart Grid and Internet of Things

Modern sealed transformers can easily integrate various sensors and monitoring devices. For example, key parameters such as oil temperature, pressure, and partial discharge can be uploaded in real-time to the monitoring system. This lays a solid foundation for achieving predictive maintenance and building a smart grid.

2.5 Long lifespan and high investment return

Due to its internal isolation from the external environment, the aging rate of insulation materials and oil products is greatly slowed down. This means that the expected service life of the transformer can reach 25 years or even longer. From the perspective of the entire lifecycle, its total cost of ownership is much lower than that of traditional equipment that requires frequent maintenance.

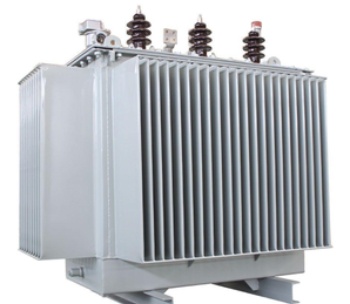

oil immersed power transformer

3.Future outlook: Oil immersed transformer More environmentally friendly and intelligent

The technology of oil immersed transformers is still constantly advancing. The focus of the future will be on:

Environmentally friendly insulating oil: Biodegradable ester insulating oil is gradually becoming popular. They have the advantages of high ignition point, environmental friendliness and non toxicity, and are the future development direction.

Deep digitalization: Transformers will no longer be isolated devices, but will become intelligent nodes in the energy Internet of Things, providing real-time health status diagnosis and operation recommendations.

Conclusion: Choosing a 1000kVA fully sealed oil immersed transformer is not only an equipment update, but also a strategic investment for the future. It combines efficiency, safety, and intelligence, and is the cornerstone of ensuring the stable operation of your power system for the next decade or even longer.
