The Ultimate Guide to 3-Phase Dry-Type Transformers: Powering Modern Industry Safely and Efficiently

In an era where industrial safety, energy efficiency, and reliability are paramount, the 3-phase dry-type transformer has emerged as a critical component in electrical power distribution systems. Unlike their liquid-filled counterparts, these transformers use air or sealed gas as a cooling medium, eliminating the risks of leaks, spills, and environmental contamination. This makes them the preferred choice for a wide range of applications, from manufacturing plants and commercial buildings to renewable energy projects and data centers.

What is a 3-Phase Dry-Type Transformer?

A 3-phase dry-type transformer is an electrical device that transfers electrical energy between three-phase AC systems without using liquid for cooling or insulation. It operates on the principle of electromagnetic induction, stepping voltage up or down to meet specific requirements. The “dry-type” designation means the core and windings are protected within a ventilated or sealed enclosure and cooled by ambient air or forced air systems. Key construction features include high-temperature insulation systems (often using VPI or VPE resin), aluminum or copper windings, and robust enclosures rated for various environmental conditions (NEMA standards).

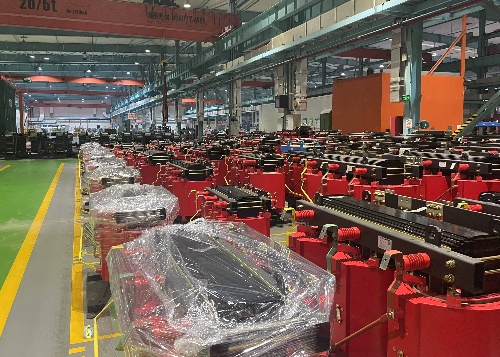

Dry Type Transformer

Key Advantages of Dry-Type Transformers

The rising popularity of 3-phase dry-type transformers is driven by their numerous benefits:

• Enhanced Safety: The absence of flammable insulating oils eliminates the risk of fire and explosions, making them ideal for indoor installations close to sensitive equipment or high-occupancy areas.
• Low Maintenance: Without the need for oil testing, filtration, or containment systems, these transformers require significantly less maintenance, reducing long-term operational costs.
• Environmental Sustainability: They are eco-friendly, containing no PCBs or oils that could potentially harm the environment. This aligns perfectly with modern sustainability initiatives and green building standards like LEED.
• Durability and Reliability: Designed with robust materials and advanced insulation, they offer excellent resistance to power surges, moisture, and contaminants, ensuring a long service life and reliable performance.

Hot Topics and Trending Applications

The market for dry-type transformers is evolving rapidly, influenced by several key trends:

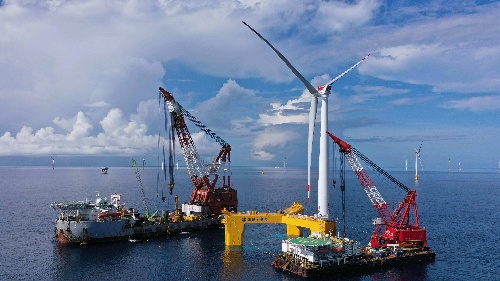

• The Renewable Energy Boom: The integration of solar power and wind energy into the grid relies heavily on dry-type transformers for step-up and step-down applications within inverter stations and distribution networks.
• Data Center Expansion: The explosive growth of cloud computing and AI demands highly reliable and safe power distribution within data centers. Dry-type transformers are the go-to solution for their fire safety and reliability.
• Industrial IoT and Smart Grids: Modern dry-type transformers can be equipped with smart sensors for real-time monitoring of parameters like temperature, load, and power quality. This enables predictive maintenance and seamless integration into Industrial IoT (IIoT) ecosystems and smart grid infrastructure.
• Retrofitting and Infrastructure Upgrades: Many industries are replacing aging oil-filled units with modern, efficient dry-type transformers to improve safety, reduce environmental liability, and enhance system energy efficiency.

Dry-type transformer usage scenarios

Choosing the Right Transformer for Your Needs

Selecting the appropriate 3-phase dry-type transformer requires careful consideration of several factors:

• kVA Rating: Determine the load requirements of your application.
• Voltage Ratings: Specify the primary (input) and secondary (output) voltages.
• Enclosure Type (NEMA Rating): Choose an enclosure suitable for the environment (e.g., NEMA 1 for indoor, NEMA 3R for outdoor).
• Impedance and Sound Level: Consider electrical characteristics and noise requirements, especially for installations near occupied spaces.
• Efficiency: Look for high-efficiency models to minimize energy losses and operating costs over the transformer’s lifespan.

Conclusion: The Future is Dry

The 3-phase dry-type transformer is more than just a piece of electrical equipment; it is a cornerstone of modern, safe, and efficient power distribution. Its inherent safety features, minimal maintenance needs, and environmental benefits make it an indispensable asset across countless industries. As trends like electrification, renewable energy, and digitalization continue to accelerate, the demand for these versatile and reliable transformers will only grow stronger, solidifying their role in powering the future.
