The Ultimate Guide to Oil Immersed Distribution Transformer

Whenever you turn on the lights or charge your phone, you may never have thought of an oil immersed distribution transformer. However, these devices are the silent guardians of our community. They efficiently and reliably transport electricity from the grid to our homes and businesses. This article will delve into why they remain an indispensable cornerstone of the global distribution network to this day.

Internal structure of an oil-type transformer, showing core and windings

1.What is an oil immersed distribution transformer?

Simply put, oil immersed distribution transformers are key components of the power grid. Its main function is to “reduce” high-voltage electricity from power lines to a lower and safer voltage. This lower voltage is then suitable for homes, offices, and factories.

The ‘oil immersed’ part is crucial. These transformers are filled with a special type of insulating oil inside, which plays two key roles.

1.1. The dual role of transformer oil

Firstly, insulating oil serves as an efficient insulating medium. It can prevent arcing between internal high-voltage components. Secondly, it is also a coolant. When current flows through a transformer, heat is generated. The insulating oil circulates, absorbs this heat, and dissipates it through the external heat sink of the transformer. This process keeps the iron core and winding at a safe working temperature, ensuring their long service life and reliability.

1.2. The type of transformer oil used

Traditionally, mineral oil has been the standard choice. However, now there are more advanced options available:
Mineral oil: a refined hydrocarbon oil. It is cost-effective and has excellent insulation performance.
Silicone oil: It has a higher ignition point and flash point, thereby enhancing safety.
Natural ester (bio) oil: made from natural plant seeds. It has biodegradability and non toxicity, making it an environmentally friendly choice for sensitive environments.

2.Main advantages of oil immersed distribution transformers

Why are these transformers so widely used? The answer lies in their many proven benefits.

2.1. Excellent cooling performance and overload capacity

The cooling efficiency of oil is a major advantage. Compared with dry-type transformers, oil immersed transformers can withstand higher overloads in a short period of time. This makes it very sturdy and durable, especially during peak energy demand or unexpected power surges.

2.2. Long service life and durability

If maintained properly, the service life of an oil immersed distribution transformer can reach 30 years or even longer. Insulating oil protects the paper and copper windings inside from moisture and oxidation. This protection significantly slows down the aging process.

2.3. cost-effectiveness

For the same rated power, oil immersed transformers are usually more cost-effective than dry-type transformers. This makes it the preferred choice for utility companies and large industrial projects, where budget and performance are key considerations.

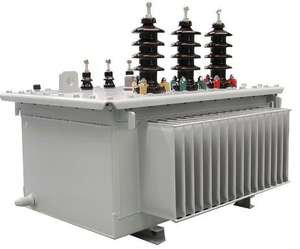

Industrial power transformer filled with insulating oil for cooling and insulation

3.Hot topics and modern innovation

The field of oil immersed transformers is not static. It is constantly evolving towards safety and environmental responsibility.

3.1. Transition to environmentally friendly insulation fluid

One major trend is to gradually phase out traditional mineral oils. Public utility companies are increasingly adopting natural and synthetic esters. These liquids are fire safe and have minimal impact on the environment. If a leak occurs, they will naturally decompose without damaging the soil or water source.

3.2. Using flame-retardant liquids to enhance safety

In areas with high fire safety standards, silicone oil and high-temperature hydrocarbons are becoming increasingly popular. Their higher ignition point makes them a safer choice for indoor installation or near public places.

3.3. Smart grid integration

Modern oil immersed transformers are becoming increasingly “intelligent”. They can be equipped with sensors to monitor:
temperature
oil level
load current
Dissolved gases in oil (key indicator of internal faults)
These data make predictive maintenance possible and help prevent failures before they occur.

Oil immersed distribution transformers are a mature, reliable, and constantly evolving technology. Their excellent cooling capacity, long service life, and outstanding cost-effectiveness ensure that they continue to serve as the backbone of global power distribution. With the continuous innovation of insulating liquids and intelligent monitoring technology, they are fully capable of powering our future in a sustainable and safe manner.
