Abstract: In the wave of upgrading urban and rural power grids and popularizing new energy, pole type transformers are crucial as power “transfer stations”. But facing the different types of single-phase and three-phase, many people feel confused when choosing. This article will analyze the differences, application scenarios, and selection points between single-phase and three-phase pole transformers in a simple and easy to understand manner, to help you make informed decisions.

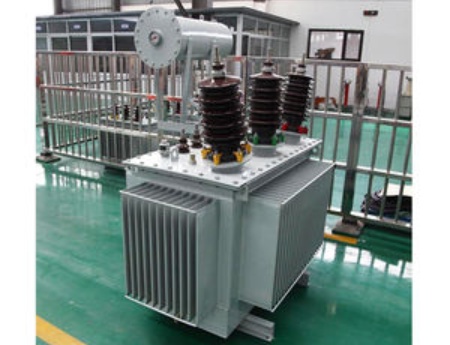

Oil Immersed Transformer Images: Internal Views and Construction Details
1.Understanding pole transformers: the “street guardians” of the power system
Rod type transformer, as the name suggests, is a transformer installed on a utility pole. It has a compact structure and is easy to install, making it a key node in the distribution network. Its main task is to reduce the high voltage on transmission lines to a safe voltage that can be directly used by households, shops, and factories.
1.1 Core advantages of pole type transformers
Firstly, it saves land. No need to build a dedicated distribution room, especially suitable for areas with tight land use.
Secondly, it has flexible installation and low cost. Directly utilizing the existing utility pole structure, with a short construction period.
Finally, it is easy to maintain. Technicians can directly climb onto the pole for operation, greatly improving the efficiency of operation and maintenance.
2.Single phase pole transformer: the main force illuminating ordinary people’s homes
Single phase pole transformers are the most common type in our daily lives. It usually serves residential areas, rural areas, and small commercial shops.
2.1 Application scenarios of single-phase transformers
You can find it on the power poles in most residential areas. Because it mainly provides 220V residential electricity, which is sufficient to meet daily needs such as lighting, home appliances, and air conditioning. In addition, it is widely used in single load scenarios such as street lighting and small processing workshops.
2.2 Outstanding features of single-phase transformers
Its structure is very simple, with a small volume and light weight. Therefore, its manufacturing and maintenance costs are relatively low. For residential areas with low load density, it is an economically efficient solution.
3.Three phase pole transformer: a powerful engine driving the operation of industry and commerce
Three phase pole transformers are mainly aimed at industrial and commercial environments with higher demand for electricity. It can provide stable and continuous three-phase power.
3.1 Key Applications of Three phase Transformers
The factory workshop is its main battlefield. Because most industrial machines, such as electric motors, CNC machine tools, etc., require three-phase electricity to drive. At the same time, it also supplies power to commercial complexes, water pump stations, and rapidly growing clusters of electric vehicle charging stations.
3.2 Core advantages of three-phase transformers
Its biggest advantage is its high power, which can drive high-power equipment to operate stably. Meanwhile, three-phase systems save more wires and have higher operating efficiency than single-phase systems when transmitting the same power.

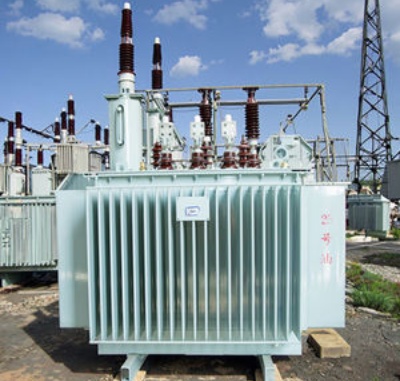

Oil Immersed Transformer Pictures: On-Site Installation & Applications
4.Single phase vs Three phase: A Decision Guide for Precise Selection of Your Project
The choice of transformer depends on your specific electricity needs.
4.1 Checking the load type
If you mainly supply power to residential buildings and small shops, choosing a single-phase pole transformer is sufficient.
On the contrary, if your project involves factories, large farms, or charging stations, you must choose a three-phase pole transformer.
4.2 Consider reliability and cost
In residential areas, sometimes multiple single-phase transformers are used to form a “three-phase network” for power supply. This method has a relatively small impact when a transformer fails. However, in terms of overall power and efficiency, for concentrated large three-phase loads, a single three-phase transformer is a better solution.
Summary: In today’s modernized power grid and grid connected distributed energy (such as rooftop photovoltaics), the correct selection of transformer type is the cornerstone of ensuring power supply reliability and economy. Understanding the fundamental difference between single-phase and three-phase is the first step in making the right decision.
