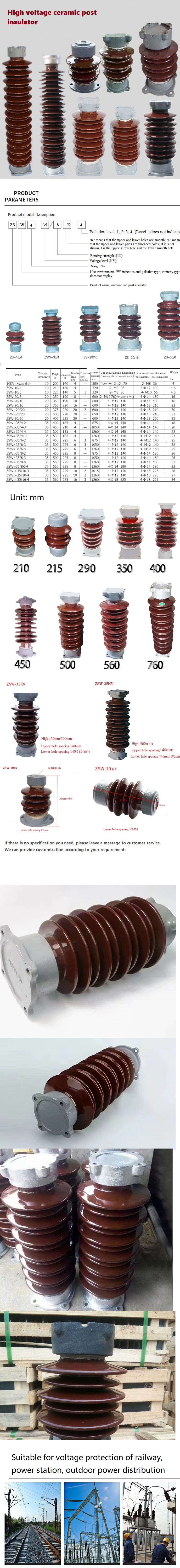

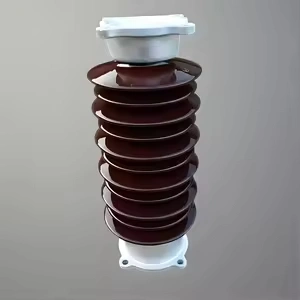

High voltage ceramic insulator
Outdoor high voltage ceramic insulator 20kv China Manufacturer
Plateau type ZSW-35KV post insulator with fittings China Manufacturer
35KV Power high-voltage wire support porcelain column China Manufacturer
ZSW-20KV support high-voltage porcelain insulator China Manufacturer
High voltage ceramic bus support post insulator China Manufacturer
Outdoor ceramic post insulator ZSW-35KV/8 China Manufacturer
High voltage 35KV porcelain bottle rod post insulator China Manufacturer
Overview of High Voltage Ceramic Insulators
High voltage ceramic insulators are critical components used to isolate and support electrical conductors in high-voltage systems. They prevent leakage currents and ensure safe transmission of electricity.
These insulators are widely used in transmission lines, substations, and power distribution systems, offering excellent mechanical strength and electrical insulation performance.
How High Voltage Ceramic Insulators Work

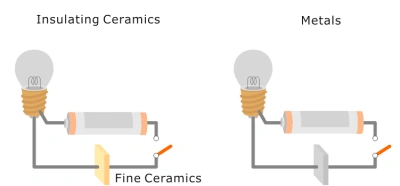

Ceramic insulators prevent current flow between conductors and grounded structures.
| Component | Function |
|---|---|
| Porcelain Body | Provides insulation |
| Metal Fittings | Connects to conductors |
| Glazed Surface | Prevents moisture absorption |
| Creepage Distance | Reduces leakage current |

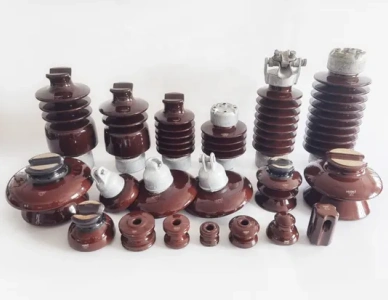

Types of Ceramic Insulators

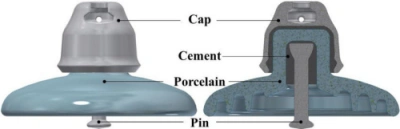

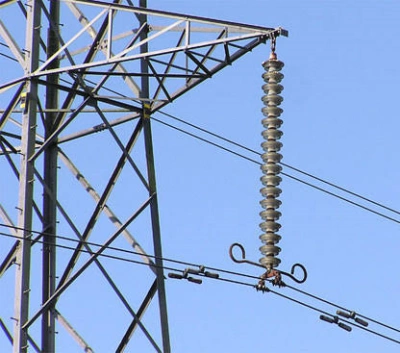

- Suspension Insulators – Used in transmission lines

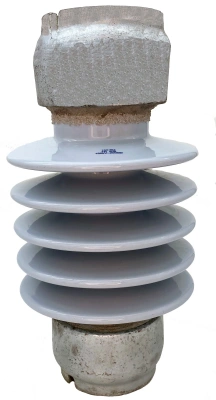

- Post Insulators – Used in substations

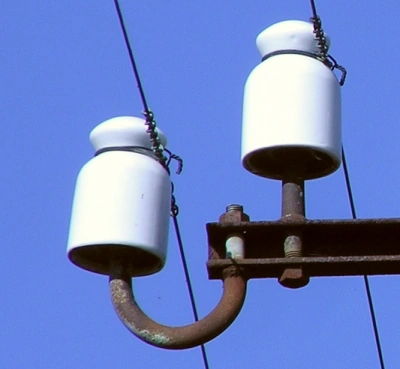

- Pin Insulators – Used in distribution lines
- Shackle Insulators – Used in low-voltage applications
Advantages of Ceramic Insulators
Reliable for High Voltage Systems
High Dielectric Strength
Excellent Weather Resistance
Long Service Life
Strong Mechanical Performance
Company Profile
Luoyang Datang Energy Technology Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing, and supply of power equipment and renewable energy solutions. Specializing in transformers, new energy components, distribution cabinets, and inverters, we have expanded our portfolio to include solar power systems, energy storage solutions, and air source heat pumps. With technological innovation as our core, we focus on creating high-reliability and high-performance power and energy efficiency solutions to serve global customers. Through a strict quality control system and international standard certification, we continuously deliver excellent products that empower our customers to build safe, stable, and sustainable power systems.
It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want a high-quality high-voltage ceramic insulator, please send us inquiries; we will be here to help you.
L/C, T/T, Western Union, Paypal, Credit Card etc.
Shipment
By sea, by air, by express, as customers request.
FAQs of High Voltage Ceramic Insulators
1. What is a ceramic insulator?
A device used to isolate electrical conductors.
2. Where are ceramic insulators used?
In transmission lines and substations.
3. Why use ceramic instead of polymer?
Ceramic offers high durability and stability.

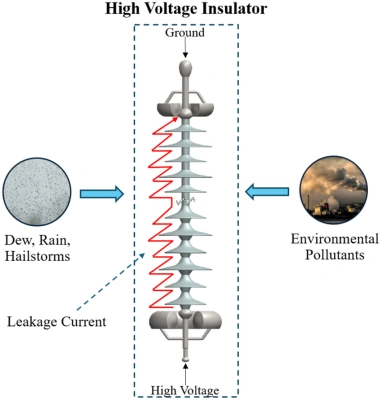

4. What is creepage distance?
It is the path along the insulator surface that prevents leakage current.
5. Are ceramic insulators weather-resistant?
Yes, they perform well in harsh environments.
