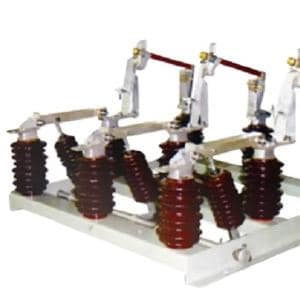

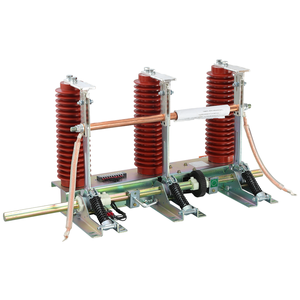

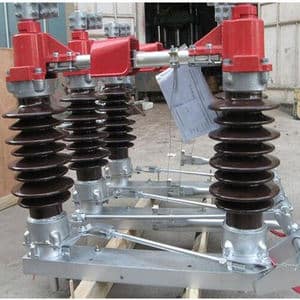

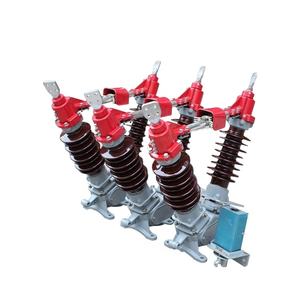

Overview of 33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch

33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch is critical switching equipment used in electrical systems of power plants and substations. Its primary function is to guarantee the safety of high-voltage electrical appliances and equipment during maintenance work and to isolate voltage. It cannot be used to cut off, input, or disconnect load current and short-circuit current. It can only be used for certain switch operations that do not generate strong arcs—usually used in conjunction with high-voltage circuit breakers to isolate the power supply during maintenance, providing safety protection for maintenance personnel and equipment. According to the installation location and the number of insulation columns, they can be divided into indoor type, outdoor type, single-column, double-column, and three-column types. The electrical system of power plants and substations is crucial for guaranteeing the safety of maintenance personnel and equipment.

Characteristics of 33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch

“Safety guarantee during maintenance of high-voltage electrical appliances and devices: This is the primary function of high-voltage isolation switches, which can ensure the safety of equipment and operators during maintenance work.

Isolation voltage: It plays the role of isolating voltage and cannot be used to cut off or connect current, nor can it be used to break short-circuit current.

Nonarc extinguishing function: It cannot be used to cut off current; that is, it does not have an arc extinguishing function.

Multiple types: According to the installation location, it can be divided by indoor and outdoor types. According to the number of insulation pillars, they can be divided into single-column, double-column, and triple-column types. Each voltage level has optional equipment.”

Specifications of 33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch

This 33KV 630Amp Exterior Switch over Disconnector offers a clear, noticeable break in medium voltage power lines. It guarantees circuits are securely isolated before maintenance job starts. Security for employees is its key feature.

The device is ranked for 33 kilovolts maximum system voltage. It takes care of continuous currents up to 630 Amperes accurately. A considerable isolating range is assured when the switch is open. This visible void verifies the circuit is de-energized.

Durable building and construction utilizes a hot-dip galvanized steel base structure. This structure resists rust effectively in severe outdoor setups. Top-quality silicone rubber insulators offer exceptional electrical insulation. These insulators additionally stand up to pollution and UV exposure well. They preserve performance over several years.

Operation is simple and manual. Personnel make use of a shielded operating pole on the ground. They engage the turning system. This action opens up or shuts the major get in touches with. The switch placement is plainly noticeable. Open up or closed condition is apparent from a range.

The design prioritizes resilience. It attains a high Ingress Security (IP) rating. Rain, dust, and wind don’t endanger its feature. The galvanized surface battles corrosion properly. This makes it suitable for difficult environments. Coastal locations or commercial areas are not a problem.

This disconnector is crucial equipment in electric substations. It secures transformers and various other crucial gear. Industrial plants utilize it for isolating sections of their power network. Energy business rely on it for safe line upkeep. Wind ranches and solar installments likewise use it extensively. It makes certain secure working problems all over.

Applications of 33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch

This 33KV 630Amp Exterior Switch over Disconnector is vital for managing medium-voltage power systems safely outdoors. Its primary work is supplying clear, noticeable isolation. Employees require this assurance prior to starting maintenance on transformers, circuit breakers, or power lines. It literally separates the devices from live electric sources. This stops unsafe accidents.

Substations count greatly on these disconnectors. They isolate private transformers or feeder circuits. This enables risk-free work with one component while the remainder stays stimulated. Plant utilize them similarly. They separate big motors, generators, or entire sections of their interior power network for servicing.

Power utilities mount them along overhead lines. They separate specific line sections. Crews can after that safely fix mistakes or carry out upgrades without closing down the entire circuit. This lessens customer failures. The button is also essential in renewable energy setups. It isolates solar ranches or wind generator links from the main grid throughout upkeep or emergency situations.

The visible open gap is crucial. It confirms the circuit area is genuinely dead. This uses physical proof past just relay signals. Operators in some cases use these switches for basic changing jobs. They may transfer tons in between various source of power. They are not developed for disrupting hefty lots currents. That job belongs to breaker.

Its robust outside building and construction manages challenging weather condition. Rain, wind, dirt, and vast temperature swings position no problem. This ensures dependable operation year-round in subjected locations. The 630Amp score matches usual feeder and circulation circuit capabilities. The 33KV degree matches common sub-transmission and key distribution voltages. Correct installation and normal upkeep are important. They keep the switch operating securely and dependably for its lengthy life span.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality 33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of 33KV 630Amp Outdoor Switch Disconnector / Disconnect Switch / Isolator Switch

What is a 33KV 630Amp Outdoor Switch Disconnector?
This device isolates electrical circuits. It breaks connections visibly. It ensures safe maintenance. It handles 33,000 volts. It handles 630 amps current. It’s for outdoor use. Weather doesn’t affect it.

Is this switch safe?
Yes, safety is key. It provides a clear air gap. You see the isolation. It confirms circuits are dead. Workers stay safe. It uses strong insulation. It withstands lightning strikes. It prevents accidental closure. Locking mechanisms are standard.

Where do you use this disconnector?
It fits many outdoor substations. Power distribution networks need it. Industries use it. Renewable energy sites use it. It connects/disconnects transformers. It isolates feeders or lines. It works with circuit breakers. It provides maintenance points.

Does it need much upkeep?
It needs minimal maintenance. Its design is simple. Few moving parts exist. Regular visual checks help. Look for damage. Look for dirt. Look for corrosion. Lubricate moving parts sometimes. Follow the maker’s schedule. Harsh environments need more checks.

How is it installed?
Installation needs professionals. Use correct foundations. Ensure proper alignment. Connect the busbars carefully. Ground the frame securely. Check clearances meet standards. Verify operation manually first. Electrical testing is essential after. Only trained personnel do this.
