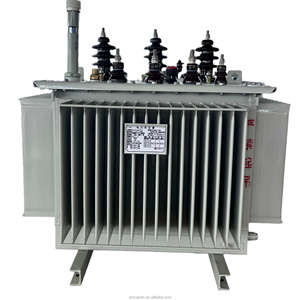

50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer

Overview of 50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer

An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in an insulating oil. This oil serves two primary functions: it acts as a highly effective insulator between conductive parts and as a coolant to dissipate heat generated during operation. These transformers are robust, reliable, and highly efficient, making them the standard choice for high-voltage power distribution and transmission networks, typically installed outdoors in substations.

Features of 50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer

• Effective Cooling: The insulating oil efficiently absorbs heat from the core and windings and transfers it to the radiator fins, allowing for natural or forced circulation and higher overload capacity.
• Superior Insulation: The oil provides much better dielectric strength than air, allowing for a more compact design for a given voltage rating and protecting against short circuits.
• Robust Construction: Designed for long-term, reliable operation (often 25-30 years) in harsh outdoor environments.
• Overload Capacity: Can handle temporary power overloads better than dry-type transformers due to the thermal mass and cooling properties of the oil.
• Protection System: Equipped with a conservator tank (to allow for oil expansion), breather (to absorb moisture from air), and protective relays (Buchholz relay) for internal fault detection.
• Cost-Effective: Generally more economical for high-power applications compared to dry-type transformers.

Specifications of 50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer

This 50kVA 33kV three-phase oil-immersed transformer is developed tough for factory power circulation. It takes care of high voltage input smoothly. The core uses high-grade silicon steel. This lowers power loss dramatically. Copper windings make certain excellent conductivity. They also lower energy waste throughout operation.

The transformer sits inside a strong steel storage tank. This tank is loaded with special shielding oil. The oil cools down the windings successfully. It likewise gives essential electrical insulation. This style allows reputable operation under hefty lots. The transformer takes care of heat well. It runs cooler than older models. This enhances its life expectancy.

This device is a low-loss kind. It conserves energy contrasted to basic transformers. Factories see lower electricity costs. The design decreases wasted power as warmth. Effectiveness is a crucial emphasis. Large manufacturing facilities use these for reputable step-down voltage conversion. 33kV input ends up being usable lower voltage power. It powers equipment, lights, and various other systems.

The steel storage tank is welded for strength. It withstands leaks and deterioration. Exterior ribs include surface area. This helps the oil cool off much faster. Security attributes are consisted of. A pressure launch valve prevents storage tank rupture. A Buchholz relay detects internal mistakes promptly. These attributes safeguard the transformer and the power system. The device is created for long solution with very little hassle. Routine oil checks and testing are all it requires.

Applications of 50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer

This 50kVA 33kV oil-immersed transformer is important commercial devices. It tips down high voltage electricity from the major grid. Manufacturing facilities need this lower voltage to safely power heavy equipment. The 33kV score takes care of common key circulation voltages. The 50kVA ability fits medium-power factory areas or smaller entire facilities.

Its core layout makes use of three-phase power. Three-phase power is the standard for industrial motors and big devices. It provides power successfully and smoothly. The transformer is totally immersed in insulating oil. This oil is essential. It cools the transformer windings efficiently throughout continual operation. Excellent air conditioning avoids overheating. Overheating problems parts and cuts transformer life short.

This design focuses on low electrical losses. Low losses suggest less squandered energy. Less wasted power saves money on electricity expenses. It likewise produces less warmth inside. Less inner warmth anxiety boosts lasting reliability. The durable oil-filled tank supplies strong security. It guards interior components from dirt, dampness, and small physical influences. This security is essential in demanding manufacturing facility environments.

These transformers are developed tough for continuous task. Factories run 24/7. This transformer keeps running reliably. Its key duty is distributing power within the manufacturing facility complicated. It attaches directly to the high-voltage inbound supply. It tips that voltage to much safer, usable degrees like 415V or 690V. This lower voltage feeds workshops, production line, and handling areas.

You see them in making plants, processing facilities, and big commercial complicateds. They power device devices, conveyor systems, huge pumps, compressors, and industrial lighting networks. The oil insulation permits a portable size for its power ranking. This saves valuable area. Safety is fundamental. The grounded container lessens electrical shock risks throughout procedure. Normal oil checks and maintenance make certain decades of trustworthy service.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality 50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of 50kVA 33kV Factory Three Phase Oil Immersed Transformer Hot ing Low Loss Oil Filled Distribution Transformer

Here are the top five questions people ask about our 50kVA 33kV Factory Three Phase Oil Immersed Transformer:

What exactly does this transformer do?
This transformer steps down high voltage electricity. It takes 33,000 volts from the main grid. It changes this to a lower voltage safe for machines inside a factory. It powers heavy equipment reliably.

Is it safe for indoor factory use?
Yes. Safety is critical. The transformer core and windings sit inside a strong steel tank filled with special insulating oil. The tank is completely sealed. This prevents oil leaks. It contains any internal faults safely. The tank has a robust design meeting all safety standards.

How much maintenance is needed?
Very little. The sealed oil tank design is key. Good quality oil protects the internal parts. It keeps the transformer cool under load. You mainly need periodic checks. Check the oil level. Look for leaks. Monitor temperature gauges. It’s a low-maintenance solution for factories.

Why call it “Low Loss”?
The design minimizes wasted energy. High-grade silicon steel makes the core. This core has excellent magnetic properties. Precision copper windings reduce electrical resistance. The result is less energy lost as heat. Less loss means lower running costs. It saves power bills over its long life.

How long will it last in a tough factory?
Decades. The construction is heavy-duty. The steel tank resists corrosion. It often has a hot dip galvanized finish. This protects against factory air and moisture. The oil insulation system handles high temperatures well. These transformers prove reliable for 25 years or more in demanding industrial settings.
