Mv hv 2000kva 1000 kva transformer AC 33KV

Contact NowPinterest

Product Attributes

Model No.: S-1000KVA

Brand: PDDN

Place Of Origin: China

Use: Power, Current, Electronic, High Frequency, Lighting, Audio, Potential, Instrument, Rectifier, Pulse, Reactor

Phase: Three

Coil Structure: Toroidal

Number Of Coils: Autotransformer

Product Name: Oil immersed transformer with conservator

Rated Capacity: 1MVA~120MVA

Rated Primary Voltage: 11KV~110KV

Rated Secondary Voltage: 400V ~10000V or Customized according to requirements

Frequency: 50Hz/60Hz

Connection Form: A

Cooling Mode: ONAN

Connection Group Number: Dyn11/Dyn0

Core Material: Copper / aluminum

Packaging & Delivery

Product Description

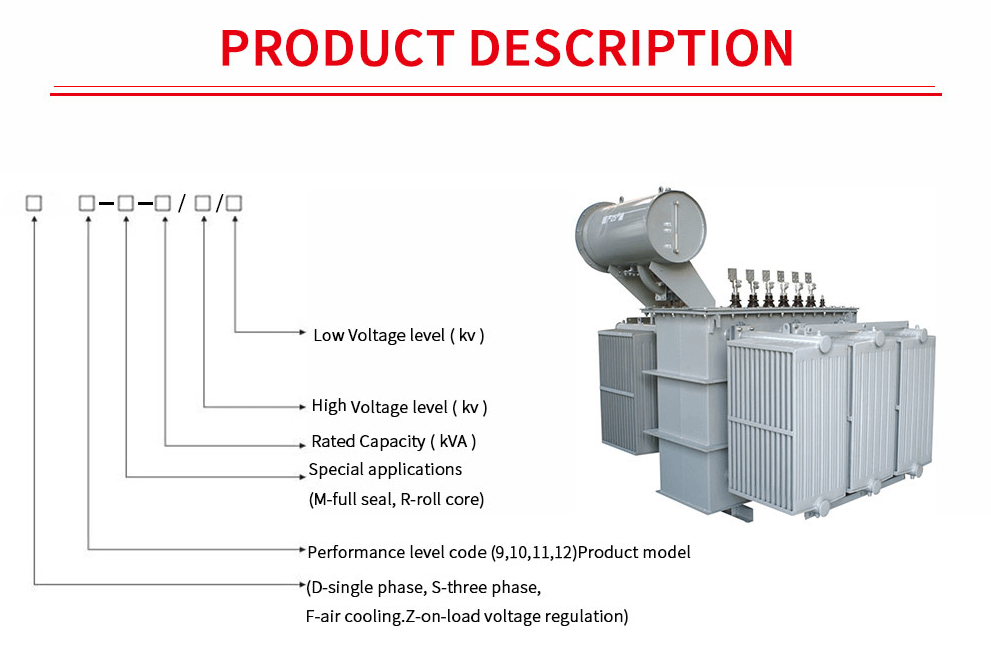

The Oil Immersed Transformer has the characteristics of good heat dissipation, low loss, large capacity, low price, etc. Its main role in the power grid is the conversion of electric energy, that is, the conversion of voltage level. It is understood that most of the power transformers operating in the power grid are Oil Immersed Transformers.

The oil-immersed transformer is a high-performance transformer with a more reasonable structure and better performance. The iron core is made of an electrical steel strip, and the laminations at all levels are prepared in order according to the section shape of the iron core column and iron yoke. Each lamination must be stacked directionally in strict accordance with the stacking order to reduce hysteresis loss and eddy current loss. Therefore, the performance is further improved, the loss is reduced, the noise is reduced, the three-term balance is reduced, and the third-order harmonic component is reduced.This product is particularly suitable for renovation projects of urban and rural power grids, as well as for industrial and mining enterprises and situations where combined transformers and prefabricated substations are used.

Oil immersed transformers use oil as the main insulation method and oil as the cooling medium, such as oil immersed self cooling, oil immersed air cooling, oil immersed water cooling, and forced oil circulation.The main components of the transformer are an iron core, winding, oil tank, conservator, respirator, Pressure Relief Valve, radiator, insulating sleeve, Tap Changer, Gas Relay, thermometer, etc.

The noise of the oil-immersed transformer is low because the oil can penetrate the silicon steel sheets of the oil-immersed transformer for a long time, and the transformer oil has an elastic buffer effect.

The oil tank is the shell of the transformer, the iron core and winding are installed in the oil tank, and the oil tank is filled with transformer oil. For the transformer with a large capacity, the radiator or heat pipe is installed outside the oil tank. The common oil-immersed transformer oil has an oil conservator, which plays a larger role, and the common oil-immersed transformer oil conservator plays a higher role. The conservatory is also called an oil tank. The transformer oil will expand with heat and contract with cold due to temperature change, and the oil level will also rise or fall with temperature change. The function of the oil reservoir is to leave a buffer space for the thermal expansion and contraction of the oil, so that the tank is always full of oil. At the same time, due to the existence of oil storage tanks, the contact area between oil and air is reduced, which can slow down the oxidation of oil.
