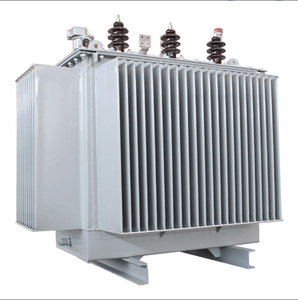

MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification

Overview of MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification

An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in an insulating oil. This oil serves two primary functions: it acts as a highly effective insulator between conductive parts and as a coolant to dissipate heat generated during operation. These transformers are robust, reliable, and highly efficient, making them the standard choice for high-voltage power distribution and transmission networks, typically installed outdoors in substations.

Features of MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification

• Effective Cooling: The insulating oil efficiently absorbs heat from the core and windings and transfers it to the radiator fins, allowing for natural or forced circulation and higher overload capacity.
• Superior Insulation: The oil provides much better dielectric strength than air, allowing for a more compact design for a given voltage rating and protecting against short circuits.
• Robust Construction: Designed for long-term, reliable operation (often 25-30 years) in harsh outdoor environments.
• Overload Capacity: Can handle temporary power overloads better than dry-type transformers due to the thermal mass and cooling properties of the oil.
• Protection System: Equipped with a conservator tank (to allow for oil expansion), breather (to absorb moisture from air), and protective relays (Buchholz relay) for internal fault detection.
• Cost-Effective: Generally more economical for high-power applications compared to dry-type transformers.

Specifications of MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification

This MV/HV transformer manages 10 kilovolts. It tips voltage up or down reliably. Several power ratings are offered: 100kVA, 200kVA, 250kVA, and 500kVA. It makes use of oil for insulation and cooling. This is a proven, sturdy design.

The core utilizes high-grade silicon steel. This minimizes power loss. Copper or light weight aluminum windings are standard. Windings are meticulously shielded. They are submerged in high-quality shielding oil. The oil protects and cools down the transformer successfully.

The transformer rests inside a tough steel storage tank. The tank is bonded for stamina. It avoids oil leakages. An expansion conservator manages oil volume modifications. This occurs with temperature level changes. A silica gel rest keeps wetness out. This shields the oil.

These transformers fulfill CE qualification requirements. They comply with stringent European standards. Security and performance are confirmed. Evaluating includes IEC 60076 criteria. This covers regimen, type, and special examinations. You get assurance of top quality and security.

The oil cools down the windings and core. Warm transfers to the storage tank walls. Air circulates naturally around the tank. This dissipates the heat. Bigger systems may need radiators. Radiators increase the cooling surface area. This keeps risk-free operating temperatures.

This transformer works well inside your home or outdoors. It fits substations, plants, and renewable resource sites. It offers secure power distribution. It attaches different voltage sections of a grid. Integrity is vital for continual operation. Very little maintenance is needed. Regular oil checks are important.

Applications of MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification

These MV&HV 10kV oil-immersed transformers (100kva, 200kva, 250kva, 500kva) modification voltage levels safely. They step voltage up or down. They lug the CE mark. This indicates they fulfill rigorous European safety and security rules.

Manufacturing facilities need reliable power. These transformers take care of hard problems inside plants. They power hefty devices and production lines. Mines and oil fields use them also. Rough environments demand durable devices. These transformers provide.

Power firms mount them in substations. They distribute electrical power across regional grids. They handle the flow from high-voltage lines to reduced voltages for towns and businesses. Constant efficiency is crucial here. These units give it.

Renewable resource tasks use them. Solar farms and wind parks create power. Commonly it requires stepping up to go into the main grid. These transformers connect the clean power resource to the transmission network successfully.

Building sites call for short-term power. Large projects require significant electricity for devices and lighting. These mobile substations make use of these transformers. They provide the required ability. They are constructed tough for site problems.

Business structures require steady power. Shopping mall, hospitals, and office obstructs use substantial power. These transformers ensure the voltage is best for developing systems. They run lights, COOLING AND HEATING, and essential devices dependably.

The CE accreditation is important. It confirms security and electromagnetic compatibility. It enables very easy sale and usage within Europe. Purchasers trust this mark. It confirms the transformer satisfies high standards.

These transformers operate in numerous demanding locations. Industrial settings, power networks, sustainable sites, building and construction zones, and big structures all benefit. Their layout focuses on toughness and lengthy life span. They deal with continual high tons. Routine upkeep keeps them competing years. Various capability options (100kva, 200kva, 250kva, 500kva) fit various power demands.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of MV&HV 10kv Transformer 100kva 200kva 250kva 500kva Oil Immersed Transformer Ce Certification

What exactly does CE Certification guarantee for these transformers?
CE Certification proves this transformer meets strict European safety and environmental standards. It is legal to sell and operate in Europe. Always check the certificate is current and valid for your country.

Where can I install these oil-filled transformers?
These 10kV transformers work indoors or outdoors. They handle tough conditions like high humidity or temperature swings. Place them in industrial areas, power stations, or large buildings needing reliable power distribution. Ensure good ventilation around the unit.

What safety features protect these transformers?
Built-in safety is key. They include pressure relief valves to prevent tank rupture if internal pressure gets too high. The oil acts as insulation and cooling. The robust steel tank contains any oil leaks. Follow all local electrical codes during installation.

How much maintenance does an oil-immersed transformer need?
Oil-immersed types need regular checks. Monitor the oil level and quality. Look for leaks. Test the oil insulation strength periodically. Clean the exterior to prevent dust buildup blocking cooling. Plan professional servicing every few years depending on usage.

How long does delivery usually take after ordering?
Standard delivery for CE-certified units like these takes about 4 to 6 weeks. This allows time for final testing and quality checks. Custom specifications or large orders may take longer. Confirm the exact timeline with your supplier before placing the order.
