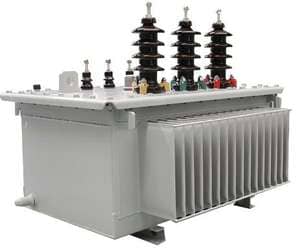

Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer

Overview of Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer

An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in an insulating oil. This oil serves two primary functions: it acts as a highly effective insulator between conductive parts and as a coolant to dissipate heat generated during operation. These transformers are robust, reliable, and highly efficient, making them the standard choice for high-voltage power distribution and transmission networks, typically installed outdoors in substations.

Features of Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer

• Effective Cooling: The insulating oil efficiently absorbs heat from the core and windings and transfers it to the radiator fins, allowing for natural or forced circulation and higher overload capacity.
• Superior Insulation: The oil provides much better dielectric strength than air, allowing for a more compact design for a given voltage rating and protecting against short circuits.
• Robust Construction: Designed for long-term, reliable operation (often 25-30 years) in harsh outdoor environments.
• Overload Capacity: Can handle temporary power overloads better than dry-type transformers due to the thermal mass and cooling properties of the oil.
• Protection System: Equipped with a conservator tank (to allow for oil expansion), breather (to absorb moisture from air), and protective relays (Buchholz relay) for internal fault detection.
• Cost-Effective: Generally more economical for high-power applications compared to dry-type transformers.

Specifications of Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer

These oil-immersed power transformers accurately step voltage up or down for industrial and energy use. They come in usual abilities: 3150 KVA, 3000 KVA, and 6300 KVA.

All systems feature a robust steel tank loaded with state-of-the-art shielding oil. This oil cools the windings and core successfully. The core makes use of top notch, grain-oriented silicon steel laminations. This lessens energy losses during procedure. Standard insulation course is commonly Class A. This makes sure excellent thermal endurance.

Main and second voltage scores are adjustable. Typical HV options consist of 11kV, 22kV, or 33kV. LV choices are typically 415V, 433V, or 6.6 kV. The specific voltages depend upon your certain application requirements. Insusceptibility worths are developed according to typical requirements. This shields versus fault currents.

ONAN cooling is basic. This indicates Oil Natural, Air Natural blood circulation. Bigger devices might make use of ONAF cooling (Oil Natural, Flying Force). This includes fans for extra air conditioning capacity. Temperature level increase restrictions comply with worldwide criteria. Limits are normally 55 ° C or 65 ° C over ambient.

Effectiveness meets or exceeds appropriate criteria like IEC 60076 or IEEE C57.12. Low no-load and lots losses are a concern. This saves operating expense over the transformer’s lifetime. Systems consist of vital safety devices. These are stress alleviation gadgets and oil level indicators. Buchholz relays are fitted for larger devices. This spots interior gas generation from faults.

Setup is straightforward. Systems are designed for outside positioning. Appropriate foundations and clearances are essential. Regular maintenance includes examining oil degrees and problem. Regular electric testing is likewise suggested. These transformers use years of reputable solution. They deal with continuous hefty tons safely.

Applications of Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer

Oil submersed power transformers manage hefty electric loads accurately. Typical dimensions like 3150 KVA, 3000 KVA, and 6300 KVA are workhorses throughout numerous sectors. They step voltage up or down effectively. Huge factories need these transformers. Places like steel mills, chemical plants, and car suppliers utilize massive quantities of power. These transformers handle the power circulation efficiently. They keep equipment running securely.

Power generation sites depend upon them also. Hydroelectric dams, thermal power plant, and renewable resource farms produce power at particular voltages. Transformers readjust this voltage for long-distance transmission. They additionally tip down voltage for local distribution networks. This ensures power reaches homes and services securely. Substations utilize these transformers frequently.

Growing cities and expanding commercial zones require updated power framework. Setting up 3000 KVA or 6300 KVA transformers boosts grid ability. They manage the increased electricity need from brand-new structures and factories. This avoids overloads and power outages. Energy firms install them frequently.

Building jobs often require temporary high-capacity power. Transformers like the 3150 KVA design offer this on-site. They power heavy tools dependably. Mining procedures in remote locations also use them. They adapt power from local resources or generators for hefty equipment usage.

These transformers are built challenging. They run continually sought after problems. The oil inside cools down the windings efficiently. It additionally shields the components. This design enables reputable, lasting solution. They require proper setup and upkeep. This guarantees maximum uptime and security. Picking the appropriate size (3150 KVA, 3000 KVA, 6300 KVA) is important. It should match the details power demands of the application.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of Oil Immersed Power Transformer 3150 Kva 3000 Kva 6300 Kva Transformer

What cooling systems do these transformers use?
These transformers mainly use ONAN or ONAF cooling. ONAN means oil circulates naturally inside the tank. Air flows naturally over the tank’s surface. ONAF also uses natural oil flow. Fans blow air over the tank’s surface. This helps remove heat better. Both methods keep the transformer working safely. The right system depends on the load and location.

Where should we install these oil transformers?
Install them outdoors or in well-ventilated indoor spaces. Good airflow is essential. They need space around them for cooling and safety. Keep them away from fire hazards. Ensure the ground slopes for oil containment. This protects the environment if leaks happen. The foundation must be strong enough. It holds the transformer’s weight and oil. Follow local safety rules exactly.

What regular maintenance do they need?
Check the oil level often. Look for leaks around the tank and valves. Test the oil quality yearly. This checks its insulation strength and moisture. Monitor the silica gel in the breather. Change it when it turns pink. Clean bushings and radiators. Inspect cooling fans and pumps. They must work correctly. Keep records of all checks and tests. This helps spot problems early.

What causes these transformers to fail?
Overloading is a big cause. It creates too much heat. This damages insulation over time. Moisture entering the oil is another problem. It lowers the oil’s insulation power. This can cause internal faults. Bad connections create heat spots. Loose connections can spark. Lightning strikes or voltage surges stress the insulation. Old age weakens materials. Poor maintenance makes these issues worse.

How long does a 3150kVA, 3000kVA, or 6300kVA oil transformer last?
Expect 20 to 30 years of service. This depends heavily on use and care. Running it within its rated load helps. Keeping the oil clean and dry is vital. Preventing moisture entry extends life. Avoiding overloads prevents premature aging. Regular maintenance finds small issues. Fixing them quickly prevents bigger failures. Good installation practices matter too. The environment affects lifespan. Harsh conditions shorten it.
