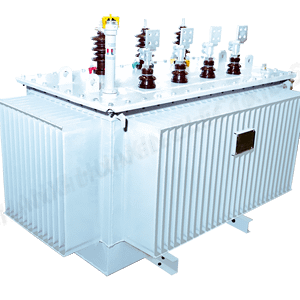

‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer

Overview of ‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer

An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in an insulating oil. This oil serves two primary functions: it acts as a highly effective insulator between conductive parts and as a coolant to dissipate heat generated during operation. These transformers are robust, reliable, and highly efficient, making them the standard choice for high-voltage power distribution and transmission networks, typically installed outdoors in substations.

Features of ‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer

• Effective Cooling: The insulating oil efficiently absorbs heat from the core and windings and transfers it to the radiator fins, allowing for natural or forced circulation and higher overload capacity.
• Superior Insulation: The oil provides much better dielectric strength than air, allowing for a more compact design for a given voltage rating and protecting against short circuits.
• Robust Construction: Designed for long-term, reliable operation (often 25-30 years) in harsh outdoor environments.
• Overload Capacity: Can handle temporary power overloads better than dry-type transformers due to the thermal mass and cooling properties of the oil.
• Protection System: Equipped with a conservator tank (to allow for oil expansion), breather (to absorb moisture from air), and protective relays (Buchholz relay) for internal fault detection.
• Cost-Effective: Generally more economical for high-power applications compared to dry-type transformers.

Specifications of ‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer

This transformer handles tough furnace jobs. It works with three-phase power systems. The oil inside keeps everything cool under heavy loads. Built for 50Hz operation, it fits standard power grids.

Voltage ratings are flexible. We customize both primary and secondary voltages to match your furnace. Input voltage typically ranges from 10kV to 35kV. Output voltage adjusts precisely for your heating elements. Power capacity scales from a few hundred kVA up to several thousand kVA. We size it right for your specific furnace duty cycle.

The oil cooling system is efficient. Special radiators or cooling fins maximize heat transfer. This keeps operating temperatures stable during long furnace runs. The sealed tank prevents leaks. High-grade transformer oil insulates and cools effectively.

Safety features are important. This transformer includes pressure relief devices. Temperature sensors monitor oil heat. Overload protection guards against unexpected surges. The robust steel tank withstands harsh furnace environments. Internal components are securely anchored to prevent movement.

Construction focuses on durability. Core and windings use top electrical steel and copper. Careful design minimizes energy losses. This boosts efficiency and saves power. Connections are accessible through sturdy bushings. Options include different tap changers for voltage adjustment.

Customization is central. We adapt the design to your furnace layout. We meet specific voltage, power, and physical size needs. Special impedance values are possible. We also offer different temperature rise limits. Protective features can be added based on your control system.

This transformer is built for reliability. It ensures stable power for consistent furnace heating. The oil-immersed design guarantees long service life. It handles the heat and demands of industrial furnace operation. Performance is consistent day after day.

Applications of ‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer

Factories need steady power. Custom three-phase oil-immersed transformers deliver that. They handle tough industrial settings well. The oil inside cools the transformer efficiently. It also insulates the internal parts. This design is very reliable. These transformers are built for specific jobs. Steel mills use them. Chemical plants rely on them. Mining operations depend on them. Any heavy industry with big motors or furnaces needs them.

The oil insulation protects against power surges. It manages heat from constant high loads. This is crucial for continuous operation. Factories cannot afford downtime. This transformer keeps things running. It powers large electric arc furnaces. It runs induction heating systems. It supplies big motors and heavy machinery. Customization is the key advantage. We build it to your exact voltage. We match your specific load requirements. We consider your site conditions. This ensures perfect integration. It maximizes performance. It extends the transformer’s working life.

These units handle overloads better than dry types. The oil absorbs extra heat. This provides a safety buffer. Maintenance is straightforward. Technicians check oil levels. They test oil quality. They inspect connections. This keeps the transformer reliable for years. It withstands dust and moisture. It tolerates temperature swings common in plants. This durability matters. Industrial environments are harsh. Standard transformers might fail. A customized oil-immersed unit powers through. It provides stable voltage under heavy load. Your sensitive equipment stays protected. Your production line keeps moving. This transformer is a workhorse. It powers critical processes daily.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality ‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of ‘s Customized Three-Phase Oil-Immersed Furnace Transformer 50Hz Oil Immersed Transformer

Here are five common questions about our Customized Three-Phase Oil-Immersed Furnace Transformer:

What makes your transformer suitable for furnace use?
Our transformer handles intense, continuous heat from furnaces. The oil cooling absorbs this heat effectively. The robust design withstands thermal cycling. We build it tough for harsh industrial environments. Reliability under heavy load is critical.

How efficient is this transformer?
Efficiency is high, typically above 98.5% at full load. Low-loss core steel and optimized windings minimize wasted energy. This saves significant operating costs over time. Reduced heat generation also extends the transformer’s life.

Can you customize the voltage and power rating?
Yes, we specialize in custom solutions. Specify your exact input voltage, output voltage, and required kVA rating. We design the transformer to match your furnace’s specific power needs. Tell us your requirements.

What safety features are included?
Safety is paramount. The tank is sealed to prevent oil leaks. A pressure relief device protects against internal faults. Temperature monitoring points are standard. The oil provides excellent insulation and fire resistance. The design meets all relevant safety standards.

How long does this transformer last?
Expect a long service life, over 25 years with proper care. High-quality materials resist degradation. The oil insulation system is very stable. Regular maintenance checks are essential. We provide clear maintenance guidelines. Protect your investment.
