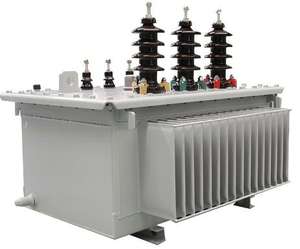

SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer

Overview of SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer

An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in an insulating oil. This oil serves two primary functions: it acts as a highly effective insulator between conductive parts and as a coolant to dissipate heat generated during operation. These transformers are robust, reliable, and highly efficient, making them the standard choice for high-voltage power distribution and transmission networks, typically installed outdoors in substations.

Features of SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer

• Effective Cooling: The insulating oil efficiently absorbs heat from the core and windings and transfers it to the radiator fins, allowing for natural or forced circulation and higher overload capacity.
• Superior Insulation: The oil provides much better dielectric strength than air, allowing for a more compact design for a given voltage rating and protecting against short circuits.
• Robust Construction: Designed for long-term, reliable operation (often 25-30 years) in harsh outdoor environments.
• Overload Capacity: Can handle temporary power overloads better than dry-type transformers due to the thermal mass and cooling properties of the oil.
• Protection System: Equipped with a conservator tank (to allow for oil expansion), breather (to absorb moisture from air), and protective relays (Buchholz relay) for internal fault detection.
• Cost-Effective: Generally more economical for high-power applications compared to dry-type transformers.

Specifications of SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer

The SH15 Series transformer delivers reliable power for demanding applications. Its capacity spans 30 to 2500 KVA. It handles three-phase systems. The primary voltage rating is 6-11KV. This suits various industrial and utility needs.

Its core uses advanced amorphous alloy. This special metal drastically cuts energy loss. Expect significantly lower no-load power waste. This saves substantial electricity costs over time. Efficiency meets stringent global standards.

The transformer is fully sealed. It uses high-quality insulating oil. This design prevents air and moisture ingress. Internal components stay perfectly protected. Maintenance needs are minimal. There’s no oil contact with outside air. This enhances long-term reliability.

Cooling happens naturally. Oil circulates through radiators. Heat dissipates effectively into the air. This allows quiet operation. Noise levels are very low. It integrates smoothly into diverse environments.

Safety is a major focus. The sealed tank design minimizes fire hazards. The insulating oil is fire-resistant. The transformer meets strict safety certifications. It operates dependably for years.

Construction is robust. The tank resists corrosion. It withstands tough operating conditions. Windings are carefully made for stability. They ensure consistent voltage delivery. Voltage regulation is precise.

This transformer excels in efficiency. It reduces electricity bills noticeably. It lowers carbon emissions too. Performance is stable under load. It offers a long service life. The SH15 Series is a smart, durable power solution.

Applications of SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer

The SH15 Series 30-2500KVA 6-11kV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer provides efficient power distribution. Its core uses amorphous alloy metal. This material cuts no-load losses significantly. This saves substantial energy costs over the transformer’s life. The unit suits many demanding applications.

Factories need reliable power. This transformer steps down 6kV or 11kV power for heavy machinery. Its low losses help large plants manage electricity expenses. Warehouses benefit too. The transformer powers lighting, HVAC systems, and material handling equipment efficiently.

Commercial buildings like shopping malls and offices require stable power. This transformer delivers it. The fully sealed oil-immersed design prevents leaks. It minimizes maintenance needs. This is important for busy locations. Reliability is key.

Hospitals and data centers cannot tolerate power interruptions. The transformer’s robust construction ensures dependable operation. Its high efficiency supports critical infrastructure. Power continuity matters here.

Renewable energy projects integrate this transformer. It connects solar farms or wind parks to the medium-voltage grid. Its low losses maximize the usable energy delivered. Every kilowatt-hour saved counts.

Infrastructure projects like water treatment plants and transportation hubs use this transformer. It handles the constant power demands. The sealed tank protects against harsh environments. Long service life is expected.

The 30-2500kVA capacity range covers diverse needs. From smaller facilities to large industrial complexes, this transformer provides a solution. Reduced energy consumption is its main advantage. Operational costs stay lower. The combination of amorphous alloy technology and sealed oil immersion offers a durable, efficient power distribution asset.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of SH15 Series 30-2500KVA 6-11KV Three Phase Amorphous Alloy Fully Sealed Oil Immersed Power Transformer

What makes the SH15 transformer energy efficient?
The core uses amorphous alloy. This material cuts energy loss much compared to regular steel. You save significant power costs over time. It meets top efficiency standards.

Why is the fully sealed tank important?
The tank has no breathing vents. Oil stays completely inside. This stops air and moisture getting in. Oxidation of the oil slows down. Transformer life gets longer. Leak risks disappear.

How does the transformer stay cool?
The oil circulates naturally inside the sealed tank. Heat moves from the core and windings to the oil. The tank’s surface then radiates this heat into the air. No fans or pumps are needed. This makes it quiet and reliable.

Where is this transformer best used?
It fits places needing reliable power. Think factories, mines, big buildings, or substations. The 6-11kV input suits many distribution networks. The 30-2500kVA range handles medium to large loads. Its efficiency helps high-usage sites.

What maintenance is required?
Very little. The sealed design protects the oil. You don’t need to check or change oil often. The amorphous alloy core stays stable. Just do basic checks like normal transformers.
