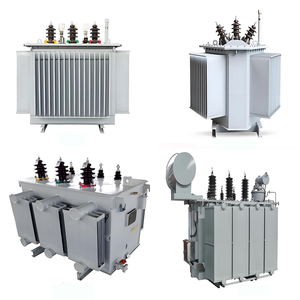

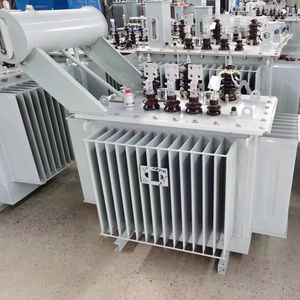

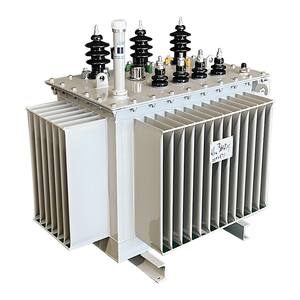

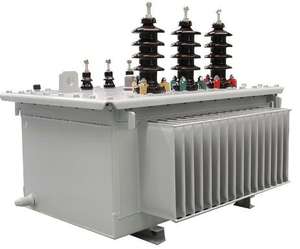

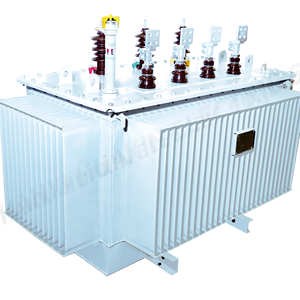

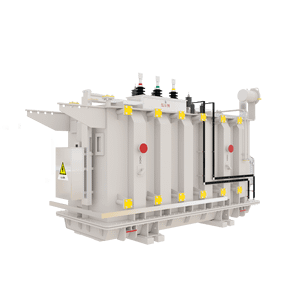

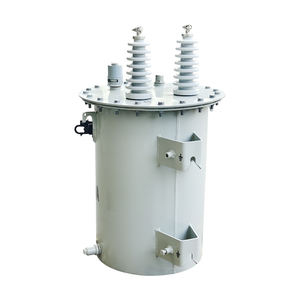

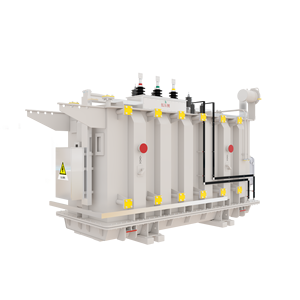

Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer

Overview of Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer

An oil-immersed transformer is a type of electrical transformer where the core and windings are submerged in an insulating oil. This oil serves two primary functions: it acts as a highly effective insulator between conductive parts and as a coolant to dissipate heat generated during operation. These transformers are robust, reliable, and highly efficient, making them the standard choice for high-voltage power distribution and transmission networks, typically installed outdoors in substations.

Features of Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer

• Effective Cooling: The insulating oil efficiently absorbs heat from the core and windings and transfers it to the radiator fins, allowing for natural or forced circulation and higher overload capacity.
• Superior Insulation: The oil provides much better dielectric strength than air, allowing for a more compact design for a given voltage rating and protecting against short circuits.
• Robust Construction: Designed for long-term, reliable operation (often 25-30 years) in harsh outdoor environments.
• Overload Capacity: Can handle temporary power overloads better than dry-type transformers due to the thermal mass and cooling properties of the oil.
• Protection System: Equipped with a conservator tank (to allow for oil expansion), breather (to absorb moisture from air), and protective relays (Buchholz relay) for internal fault detection.
• Cost-Effective: Generally more economical for high-power applications compared to dry-type transformers.

Specifications of Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer

This transformer manages power requirements from 50kva up to 200kva. It’s constructed for hard exterior usage. The secured, oil-filled design safeguards the core and windings inside. This maintains whatever running smoothly for a very long time. You get reputable power circulation.

It collaborates with standard voltages. Common configurations consist of 11kV/415V, 33kV/415V, or 6.6 kV/400V. We develop it to match your certain grid requirements. The core utilizes high-grade grain-oriented silicon steel. This cuts power losses dramatically. Copper or light weight aluminum windings are available. Both are chosen for effectiveness and longevity.

The whole unit rests inside a durable bonded steel tank. This storage tank is completely sealed. It protects against dampness and air from entering the oil. This stops the oil from breaking down. The tank includes a conservator with an oil level scale. Radiators aid cool the oil effectively. Stress alleviation devices are common for safety.

Efficiency satisfies strict criteria like IEC 60076. Tons losses and no-load losses are maintained very low. This saves you cash on power. The transformer runs quietly. It needs almost no upkeep many thanks to the closed system. Setup is simple. It mounts safely on a solid concrete base.

The oil is state-of-the-art mineral oil. It offers excellent insulation and air conditioning. All devices pass rigorous regular tests and unique tests. We inspect insulation resistance, voltage ratio, and load losses. Certifications include ISO 9001. Security functions are built-in. This transformer delivers trustworthy power every year.

Applications of Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer

These transformers handle power needs across numerous setups. Factories rely on them greatly. Big devices require steady power. These transformers tip down high voltage securely. They provide the best voltage for motors and tools. Assembly line can not stop. Constant power is essential. The secured, oil-filled style shields versus dirt and dampness. This matters in challenging industrial atmospheres. Upkeep is reduced. This conserves time and money.

Business structures use them too. Shopping mall, workplaces, healthcare facilities need dependable electrical power. Lighting, heating and cooling systems, computers demand stable power. Transformers disperse power efficiently throughout the building. They protect against overloads and voltage drops. Security is critical. The oil insulation helps handle heat and stops fires. The outdoor score implies they fit nicely next to structures or on pads. Area is usually limited in cities.

Framework tasks depend upon these units. Building and construction sites require momentary power. Substations require dependable transformers. They feed power to brand-new growths. Roadways, bridges, tunnels require electrical energy for work. The durable exterior layout deals with weather condition. Oil immersion gives cooling under hefty tons. Systems from 50kVA to 200kVA suit different job dimensions. Power has to be readily available day and night.

Renewable resource websites incorporate them. Solar ranches and wind installations produce power. This power typically requires transformation prior to feeding the grid. Transformers step up the voltage for effective long-distance travel. They link clean energy resources to the primary network. The sealed building and construction withstands exposure in open areas. Reliability ensures eco-friendly energy gets to users.

Remote locations profit considerably. Mines, ranches, towns far from cities require power. These transformers create part of regional mini-grids or substations. They make useful power from lengthy transmission lines. Oil cooling manages variable loads well. The long lasting develop withstands extreme, isolated conditions. Getting spare parts can be difficult. Low maintenance is a large benefit. Power enables crucial solutions and economic task.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of Whole 200kva Transformer High Quality Sealed Outdoor 50kva 100kva Oil Immersed Electric Power Transformer

What size is the 200kVA transformer?
It’s a large unit. Expect dimensions roughly 2 meters tall, 1.5 meters wide, 1.8 meters deep. Weight is significant, often over 1500 kg. Confirm exact measurements with the specific model datasheet before installation. Space planning is crucial.

Where can we install this transformer?
Install it outdoors only. These units are sealed for outdoor use. They handle weather like rain, sun, wind, dust. Choose a solid, level concrete pad. Ensure good air circulation around it. Keep it away from flammable materials. Follow local electrical codes precisely.

How often does it need maintenance?
Check it regularly. Inspect the oil level monthly. Look for leaks monthly too. Test the oil quality yearly. Check electrical connections yearly. Clean the exterior surfaces yearly. Schedule professional inspections every 3-5 years. Sealed designs reduce frequent major servicing.

Is this transformer efficient?
Yes, it’s highly efficient. Modern designs minimize energy losses. Expect efficiency ratings above 98% under typical load conditions. This saves significant electricity costs over its lifetime. High-quality materials and construction ensure these performance levels.

What about safety?
Safety is built-in. The oil acts as insulation and cooling. The tank is sealed, preventing leaks. It includes pressure relief devices. It has temperature monitoring points. Grounding terminals are clearly marked. Always follow strict lockout/tagout procedures during any work.
