10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers

Overview of 10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers

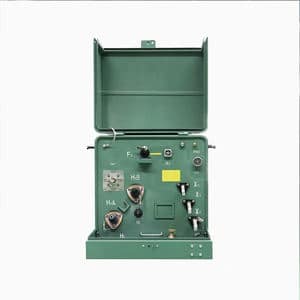

10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers is an enclosed, ground-level electrical distribution transformer commonly used in underground (UG) power systems. It steps down primary high-voltage electricity (e.g., 15kV or 25kV) to a lower secondary voltage (e.g., 120/240V or 480V) for safe distribution to residential neighborhoods, commercial buildings, and industrial parks. Its robust, lockable steel enclosure makes it safe for public areas.

Features of 10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers

Ground-Level Enclosure: A locked, tamper-resistant, weatherproof steel cabinet that protects the internal components and ensures public safety.

Underground Cable Connections: Designed for easy connection to underground primary (high-voltage) and secondary (low-voltage) cables via compartments with built-in bushings.

Compartmentalization: Separate, isolated compartments for high-voltage and low-voltage components, enhancing safety during maintenance.

Ventilation: Designed with louvers or other ventilation systems to allow for proper heat dissipation from the transformer core and coils.

Lifting Lugs: Integrated lifting lugs for easy and safe installation and replacement using a crane or hoist.

Tamper-proof Hardware: Lockable doors with special bolts to prevent unauthorized access.

Fused Switches: Often includes fused disconnect switches for circuit protection and safe isolation.

Pad Foundation: Installed on a concrete pad (“pad-mounted”) to provide a stable, level base.

Specifications of 10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers

These American box transformers deal with 10kV power. They come in 3 dimensions: 500kVA, 630kVA, and 1000kVA. All rest safely on a concrete pad. This pad-mounted layout saves room. It maintains things clean over ground.

Developed difficult for the outdoors. Thick steel wall surfaces develop the enclosure. This protects the core elements inside. The steel stands up to rust and rust. It takes on extreme weather. Rain, snow, wind are not a problem. The transformer lasts years.

Safety is vital. High-voltage parts remain entirely enclosed. Employees can not touch real-time elements. The layout avoids unintended contact. Lockable doors include protection. Just accredited individuals access the interior. The devices fulfill strict safety requirements. UL and ANSI certifications use.

Installment is straightforward. The transformer shows up primarily ready. It requires link to high-voltage line. The pad structure is ready beforehand. This reduces configuration time significantly. Placement is flexible. Use them in neighborhoods, organization parks, or industrial websites. They fit different areas quickly.

Performance is trusted. The systems supply secure voltage conversion. They manage common load needs well. Interior components are high quality. Windings and the core job successfully. This reduces energy loss. Much less waste suggests reduced operating costs. Upkeep needs are reduced. Just normal checks and cleaning suffice. The style allows for very easy servicing. Professionals access vital components without trouble.

These transformers supply power reliably. They sustain residential areas, stores, and manufacturing facilities. Sturdy construction guarantees lengthy service life. The secured enclosure protects essential devices. The pad place maintains everything protected and easily accessible.

Applications of 10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers

American Box Transformers are essential equipment. They step down high voltage electricity. This power comes from utility lines at 10,000 volts. These transformers make it safe for use in buildings and facilities. They are pad-mounted. This means they sit on a concrete slab outside. They are enclosed in a sturdy metal box. This protects them from weather and tampering.

These transformers handle different power needs. The 500kVA size is common. It powers smaller commercial buildings. Think retail stores, small offices, or apartment complexes. It provides enough electricity for lighting, heating, and basic equipment.

The 630kVA transformer handles more demand. It suits larger commercial spaces. Examples are bigger supermarkets, schools, or medium-sized factories. This size supports more machinery, air conditioning systems, and larger lighting loads effectively.

The 1000kVA unit is for heavy-duty applications. It powers large industrial facilities, big hospitals, or major data centers. It supplies the significant energy required for large motors, heavy processing equipment, and extensive climate control systems.

All these transformers are vital for distribution. They connect the high-voltage grid to your local power network. They feed power directly to the places that need it. Their compact pad-mounted design saves space. It avoids the need for large fenced substations in crowded areas. They are reliable. They ensure a steady flow of electricity for daily operations. Utilities install them in neighborhoods. Businesses also use them on their property. They form a critical link in the power chain. They deliver usable electricity safely and efficiently.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality 10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of 10kv 500kva 630kva 1000kva American Box Transformer Pad Mounted Transformers

Customers often ask these common questions about our American Box pad-mounted transformers. These units handle 10kV voltages. They come in 500kVA, 630kVA, and 1000kVA sizes.

What are these transformers used for?
They distribute power safely underground. You see them in neighborhoods, shopping centers, office parks. They step down higher voltage from utility lines. They supply usable power to buildings nearby. They are vital for reliable electricity delivery.

Are they safe?
Yes, safety is critical. The steel enclosure is tamper-proof. It locks securely. It meets strict safety standards. Internal fault interrupters protect the system. The design prevents public access to live parts. This minimizes risks.

What about installation?
Installation needs a solid concrete pad. The pad must be level and strong. The size depends on the transformer. Proper grounding is absolutely essential. Cable connections are made through base ducts. Skilled technicians should handle setup. Follow local codes precisely.

How much maintenance is required?
These transformers need very little regular upkeep. They are built for reliability. Visual inspections are recommended periodically. Check for leaks, damage, or corrosion. Oil testing might be needed occasionally. Otherwise, they operate reliably for years.

Can we get custom features?
Yes, some customization is possible. Options include special paint colors, specific cable entry points, or extra gauges. Discuss your exact needs early. We will confirm feasibility. Standard configurations offer the best value and quickest delivery.
