2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers

Overview of 2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers

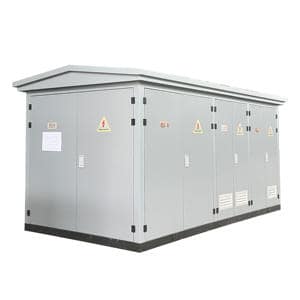

2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers is an enclosed, ground-level electrical distribution transformer commonly used in underground (UG) power systems. It steps down primary high-voltage electricity (e.g., 15kV or 25kV) to a lower secondary voltage (e.g., 120/240V or 480V) for safe distribution to residential neighborhoods, commercial buildings, and industrial parks. Its robust, lockable steel enclosure makes it safe for public areas.

Features of 2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers

Ground-Level Enclosure: A locked, tamper-resistant, weatherproof steel cabinet that protects the internal components and ensures public safety.

Underground Cable Connections: Designed for easy connection to underground primary (high-voltage) and secondary (low-voltage) cables via compartments with built-in bushings.

Compartmentalization: Separate, isolated compartments for high-voltage and low-voltage components, enhancing safety during maintenance.

Ventilation: Designed with louvers or other ventilation systems to allow for proper heat dissipation from the transformer core and coils.

Lifting Lugs: Integrated lifting lugs for easy and safe installation and replacement using a crane or hoist.

Tamper-proof Hardware: Lockable doors with special bolts to prevent unauthorized access.

Fused Switches: Often includes fused disconnect switches for circuit protection and safe isolation.

Pad Foundation: Installed on a concrete pad (“pad-mounted”) to provide a stable, level base.

Specifications of 2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers

The 2025 VKE Power 2500kVA 12kV Class Three Phase Pad Mounted Substation Transformer delivers reliable power distribution. This transformer handles up to 2500kVA. It works with 12kV systems. It’s built for three-phase electrical networks. This model suits commercial areas, industrial sites, and housing developments needing robust power.

Its core uses high-grade grain-oriented electrical steel. The coils are wound with tough electrolytic copper. This combination ensures high efficiency. It minimizes energy loss during operation. The transformer uses mineral oil for cooling and insulation. This keeps temperatures stable under heavy loads. It protects internal parts effectively.

The tank is made from strong welded steel. It features a bolted cover for easy access during maintenance. An external radiator enhances heat dissipation. Corrosion resistance is a priority. The tank gets a durable paint finish. This protects against harsh weather conditions. The unit includes visible pressure indicators. It has liquid level gauges too. These provide clear status checks.

Safety is critical. The transformer meets all key industry standards. It features a pressure relief device. This activates automatically during internal overpressure events. The design includes secure grounding points. It carries an IP55 protection rating. This keeps out dust and water jets. The unit withstands significant fault currents. It ensures network stability.

Installation is straightforward. The transformer arrives pre-assembled and tested. It mounts directly onto a concrete pad foundation. Terminations are easily accessible. They are located in protected compartments. This allows safe connection to incoming and outgoing cables. The compact design saves space on-site.

Rigorous testing guarantees performance. Each unit undergoes full factory checks. Tests include resistance measurements, turns ratio verification, and polarity confirmation. Insulation resistance is thoroughly checked. The transformer passes applied and induced voltage tests. It handles impulse tests successfully. These tests confirm it operates reliably for years.

Maintenance needs are low. The robust design minimizes upkeep. Regular inspections are recommended. These ensure long service life and dependable operation.

Applications of 2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers

VKE Power’s 2025 model 2500kva 12kv three-phase pad mounted transformer delivers serious power where you need it. This unit handles big power needs reliably. It fits many demanding situations.

Factories use this transformer daily. It powers heavy machinery without trouble. Manufacturing plants depend on its steady performance. Mines need tough equipment. This transformer works well underground. It handles dust, vibration, and rough conditions. Construction sites require temporary power solutions. This pad-mount unit is perfect. Crews get stable electricity quickly.

Renewable energy projects benefit too. Solar farms and wind installations connect to the grid using these transformers. They manage the power flow smoothly. Data centers need constant, clean power. This transformer helps provide that critical reliability. Water treatment plants run essential services. They trust this equipment for continuous operation.

The transformer is built tough. Its sealed tank protects the core and windings from weather. Rain, snow, and dirt stay outside. This design prevents failures. It extends the transformer’s working life significantly. Maintenance is easier. Technicians access key components simply. This saves time and money.

Safety is a major focus. The unit meets strict international standards. People nearby are protected. The enclosure prevents accidental contact with live parts. Fire risk is minimized by design. The transformer uses high-quality insulating oil. This oil cools the unit effectively. It also prevents electrical breakdowns.

Installation is straightforward. The compact pad-mount design saves space. It fits easily in tight spots like parking lots or building sides. Utility companies install these units quickly. They connect reliably to existing power grids. Businesses get power faster. Communities see improved service. This transformer keeps operations running. It reduces costly downtime.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality 2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of 2025 VKE Power’s Best 2500kva 12kv Class Three Phase Pad Mounted Substation Transformers

Customers often ask about our 2025 VKE Power 2500kVA 12kV Pad Mounted Substation Transformers. Here are the top five questions answered.

What safety features protect the transformer? The unit has a strong, tamper-proof steel enclosure. This keeps people safe. Internal fault protection is built-in. The transformer uses mineral oil. This oil has a high fire point. It reduces fire risk significantly. Grounding points are clearly marked. Proper grounding is essential for safety.

How reliable is this transformer in tough weather? It is designed for harsh conditions. The enclosure is weatherproof. Rain, snow, wind cause no problems. Hermetic sealing prevents moisture getting inside. Moisture damages electrical parts. The oil insulation system handles temperature extremes well. Hot summers, cold winters are fine. The materials resist corrosion. Salt air, industrial pollution won’t harm it.

How much space is needed for installation? The compact pad-mounted design saves space. It fits easily on standard concrete pads. The dimensions are [Provide Specific Dimensions Here]. Check your site layout first. Accessibility for maintenance is important. Leave enough room around the unit. The cable entry points are accessible. Connections are straightforward.

What maintenance is required? These transformers need minimal upkeep. The sealed tank design keeps the oil clean. Oil testing intervals are long. Visual inspections are the main routine task. Check for leaks. Check for damage to the enclosure. Listen for unusual noises. Internal components are robust. They rarely fail. The design focuses on long life with little service.

Can the transformer be customized? Yes, VKE Power offers options. Common requests include specific cable entry locations. Different LV configurations are available. Special paint colors for site blending are possible. Discuss your exact needs with our sales team. We aim to meet your project specifications. Custom solutions may affect delivery time. Ask early.
