Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box

Overview of Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box

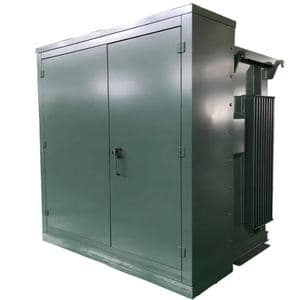

Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box is an enclosed, ground-level electrical distribution transformer commonly used in underground (UG) power systems. It steps down primary high-voltage electricity (e.g., 15kV or 25kV) to a lower secondary voltage (e.g., 120/240V or 480V) for safe distribution to residential neighborhoods, commercial buildings, and industrial parks. Its robust, lockable steel enclosure makes it safe for public areas.

Features of Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box

Ground-Level Enclosure: A locked, tamper-resistant, weatherproof steel cabinet that protects the internal components and ensures public safety.

Underground Cable Connections: Designed for easy connection to underground primary (high-voltage) and secondary (low-voltage) cables via compartments with built-in bushings.

Compartmentalization: Separate, isolated compartments for high-voltage and low-voltage components, enhancing safety during maintenance.

Ventilation: Designed with louvers or other ventilation systems to allow for proper heat dissipation from the transformer core and coils.

Lifting Lugs: Integrated lifting lugs for easy and safe installation and replacement using a crane or hoist.

Tamper-proof Hardware: Lockable doors with special bolts to prevent unauthorized access.

Fused Switches: Often includes fused disconnect switches for circuit protection and safe isolation.

Pad Foundation: Installed on a concrete pad (“pad-mounted”) to provide a stable, level base.

Specifications of Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box

Pad mounted transformers remain on concrete pads at ground degree. Post mounted transformers connect high up on energy posts. This positioning distinction matters a whole lot. You see pad-mounted units conveniently. They are confined in sturdy metal boxes. These boxes secure the electric parts inside. They keep individuals secure too. Packages secure firmly. Only energy employees ought to open them. Pad-mounted transformers manage more power generally. They vary from little dimensions to large ones. Usual rankings are 75 kVA, 150 kVA, or even 500 kVA. They power areas, companies, and institutions. Setup requires a flat concrete pad. Employees require space around it for safety and security. Maintenance is much easier at ground degree. These transformers stay dry and awesome inside their box.

Post installed transformers are various. They hang directly on energy poles. Cords attach them overhead. This conserves ground space. It’s good for jampacked streets or backwoods. Their steel containers are visible up high. They are smaller usually. Typical dimensions are 10 kVA, 25 kVA, or 50 kVA. They frequently serve simply a few houses or a small building. Getting to them needs a pail truck. Weather condition influences them more directly. They are exposed to wind, rain, and sun.

The Lihe solitary phase pad mounted transformer box fits the pad style. It holds one transformer. This unit supplies power for smaller locations. Consider a team of homes or a solitary service. It rests firmly on its concrete structure. The sturdy steel room secures everything. It holds up against weather condition and tampering. Doors secure tightly. Gain access to is controlled. Inner parts stay risk-free and completely dry. Ratings like 25 kVA or 50 kVA prevail. It links straight to below ground power lines. Result feeds to homes or structures close by. Its small dimension matches tight areas. It uses dependable power circulation. Safety and security is a major advantage. People and animals stay away from the real-time components inside. Package serves as a solid obstacle. It meets utility standards for ground degree tools. This layout is a sensible selection for lots of power requirements.

Applications of Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box

Energy companies need transformers. Pad-mounted transformers sit on concrete pads. They stay at ground degree. This placement offers benefits. Gain access to for upkeep is easier. Specialists do not climb poles. The steel enclosure provides safety. It protects individuals and animals. Package additionally shields the transformer from weather and criminal damage.

Pole-mounted transformers are different. They hang high up on utility poles. This uses room effectively. Post types work well in crowded areas. Assume active city roads or back alleys. Yet maintenance is harder. Employees must increase in buckets. Safety and security threats enhance. Pad-mounted types stay clear of these troubles. They take up ground area. This is acceptable in many areas. Believe substations, industrial locations, or brand-new housing developments.

Single-phase pad-mounted transformers prevail. They serve smaller power needs. Houses and small companies often utilize them. These devices handle standard voltages like 120/240V. They link straight to expenses or below ground lines. The strong box has whatever. Oil or newer, more secure fluid cools the core. Internal components handle the voltage modification. The style is portable and safe and secure.

The pad-mounted transformer box is vital. Its hefty steel building and construction is difficult. It withstands effect and harsh problems. Securing mechanisms protect against unauthorized entry. This keeps individuals risk-free. It likewise safeguards the critical tools inside. Correct air flow stops overheating. Package style ensures reliable operation for years. Basing connections are built-in for security.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of Lihe Utility Pad Mounted Transformer Pad Mounted Vs Pole Mounted Transformer Single Phase Pad Mounted Transformer Box

What is a pad-mounted transformer?
It’s a transformer inside a locked metal box. The box sits on a concrete pad at ground level. This setup protects the electrical parts inside. It keeps them safe from weather and people. You see these boxes near buildings or sidewalks in neighborhoods and businesses. They handle the power before it goes into homes or shops.

Why pick a pad-mounted transformer over a pole-mounted one?
Pad-mounted transformers are safer near people. They are on the ground, not up high on a pole. The locked metal box makes it hard for people to touch the dangerous parts inside. They also look better in places like neighborhoods or parks. People don’t like big transformers on poles blocking views. Ground-level access makes maintenance easier for workers too. They don’t need a bucket truck.

What is a single-phase pad-mounted transformer box used for?
It powers homes and small businesses needing standard household electricity. Most houses use single-phase power. This transformer takes the higher voltage from the power lines outside. It lowers the voltage to the safe level used inside your home, like 120/240 volts. You find these boxes serving groups of houses or small stores.

Are pad-mounted transformers safe?
Yes, they are designed for safety. The strong metal box is locked tight. Only utility workers with special tools can open it. This keeps the public safe from high-voltage parts inside. The box is also tough. It protects the transformer from weather, animals, and accidental hits. They meet strict safety rules.

How is installing a pad-mounted transformer different?
Installing a pad-mounted transformer needs ground work. Workers pour a concrete pad first. The transformer box gets placed on this pad. Underground cables bring power to it and take power away. Installing a pole-mounted transformer happens up high. Workers attach it directly to a utility pole using the poles and overhead wires. Pad-mounted needs digging and concrete; pole-mounted uses existing poles and poles.
