PV grid connection cabinet power capacitor control cabinet China Manufacturer

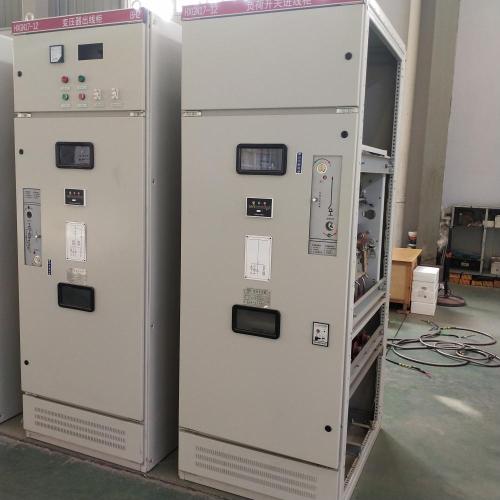

PV grid connection cabinet power capacitor control cabinet

$500-100000 /Set/Sets

Material:

Cold rolled steel plate

Size:

2000*800*600（mm）

Option:

10KV/380V

11KV/380V

15KV/380V

20KV/380V

35KV/380V

33KV/380V

Sample:

$10000.00 /Set/Sets, 1 Set/Sets (Max. Order)
Buy Sample

Product Description

Our company produces various high, medium, and Low Voltage Transformers: high voltage main transformer, fully sealed transformers, conservator transformers, Mining transformers, Electric Furnace Transformer, Pad Mounted Transformer, Explosion-proof transformers, Electrostatic Precipitator Transformer, dry-type Distribution Transformer, three-phase Isolation Transformer, single-phase isolation transformer, single-phase Control Transformer, column-mounted transformer, etc.;

Power distribution system classification：

(1) The primary power distribution equipment is collectively called the power distribution center. They are centrally installed in the substation of the enterprise and distribute electric energy to the subordinate distribution equipment in different locations. Since this level of equipment is close to a step-down transformer, the requirements for electrical parameters are very high, and the capacity of the output circuit is also significant.

(2) Secondary power distribution equipment is the general name of the power distribution cabinet and motor control center. The power distribution cabinet is used where the load is relatively dispersed, with few loops; the Motor control center is used for occasions with concentrated load and many circles. They are responsible for distributing circuit power from the upper distribution equipment to the nearest battery bank. This equipment class shall provide protection, monitoring, and control for the load.

(3) The final power distribution equipment is a lighting power distribution box. They are far away from the power supply center and are scattered small capacity power distribution equipment

Product Attributes

Brand: PDDN

Place Of Origin: China

Product Name: Final equipment of power distribution system

Product Use: Distribution system

Rated Voltage: 6kv/10kv/11kv/13.8kv//15kv/20kv/22kv/33kv/35kv/

Frequency: 50/60Hz

Shell Protection Grade: IP54

Product Certification: CCC

Rated Current: 630A/1600A /6500A OR Custom

Short Circuit Making Current: 35/50A OR Custom

Overall Dimensions: Custom (mm)

Processing Customization: yes
