Thyristor

Overview of Thyristor

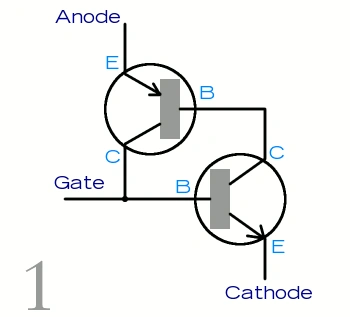

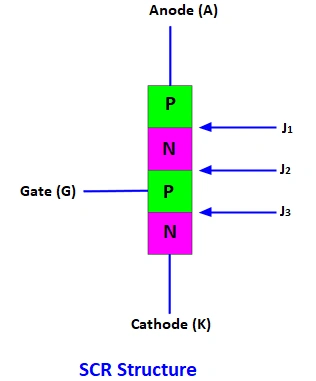

Thyristor is a solid-state semiconductor device composed of four layers of alternating P- and N-type materials. It functions as a bistable switch, conducting current only when triggered by a gate signal, and remains conducting until the voltage across it drops below a certain threshold. Thyristors are widely used for controlling high-power electrical circuits, offering efficient and reliable performance in various industrial and electronic applications.

Features of Thyristor

• High current and voltage handling capabilities
• Low on-state voltage drop, reducing power loss
• Fast switching speeds for precise control
• Latching behavior: once triggered, remains conducting without continuous gate signal
• Robust and durable design suitable for harsh environments

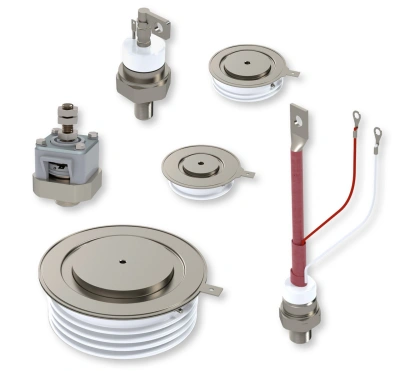

• Available in various types (e.g., SCR, TRIAC, GTO) for specific needs

Applications of Thyristor

• Power regulation and control in AC/DC converters
• Motor speed control in industrial drives
• Lighting control systems (e.g., dimmers)
• Overvoltage protection in power supplies
• Heating control in temperature regulation systems
• Renewable energy systems (e.g., wind and solar power inverters)

Company Profile

Luoyang Datang Energy Tech Co.Ltd(sales@pddn.com) is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality electronic devices or semiconductor products, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of Thyristor

1. What is the difference between a thyristor and a transistor?
   Thyristors are latching devices that remain on once triggered, while transistors require continuous control signal to stay on. Thyristors are better suited for high-power applications.
2. How do you trigger a thyristor?
   A thyristor is triggered by applying a positive gate current (for SCRs) to the gate terminal, which initiates conduction.
3. Can a thyristor be turned off voluntarily?
   Standard thyristors (SCRs) cannot be turned off via the gate; they require the current to fall below the holding current. Special types like GTOs (Gate Turn-Off thyristors) can be turned off with a gate signal.
4. What are common failure modes of thyristors?
   Common failures include overvoltage, overcurrent, overheating, and incorrect triggering. Proper heat sinking and protective circuits are essential for longevity.
5. What is the purpose of a snubber circuit in thyristor applications?
   Snubber circuits protect thyristors from voltage spikes during switching, reducing stress and preventing unintended triggering.
