Light Triggered Thyristors

Overview of Light Triggered Thyristors

Thyristor is a solid-state semiconductor device composed of four layers of alternating P- and N-type materials. It functions as a bistable switch, conducting current only when triggered by a gate signal, and remains conducting until the voltage across it drops below a certain threshold. Thyristors are widely used for controlling high-power electrical circuits, offering efficient and reliable performance in various industrial and electronic applications.

Features of Light Triggered Thyristors

• High current and voltage handling capabilities
• Low on-state voltage drop, reducing power loss
• Fast switching speeds for precise control
• Latching behavior: once triggered, remains conducting without continuous gate signal
• Robust and durable design suitable for harsh environments
• Available in various types (e.g., SCR, TRIAC, GTO) for specific needs

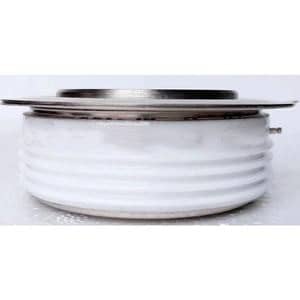

(Light Triggered Thyristors)

Specifications of Light Triggered Thyristors

Light Triggered Thyristors (LTTs) are unique power semiconductors. They turn on using light, not electric signals. This feature is necessary for high voltage systems. It offers outstanding electric isolation between the control circuit and the major power circuit. This isolation boosts safety and minimizes sound issues.

Trick specifications specify LTT efficiency. The voltage rating is vital. It tells you the optimum voltage the device can obstruct when off, and the maximum voltage it can manage when switching off. High voltage LTTs handle hundreds of volts. Existing rankings show how much power the LTT can conduct when completely on. This is normally given as a typical present or a rise current.

The light trigger needs are essential. You need to know the wavelength of light the gadget requires. Infrared light is common. The quantity of light power required to dependably switch on the thyristor is specified too. This is the minimal trigger light power. Gadget also have a maximum trigger light power restriction to stop damages. The rate at which the tool turns on after getting light matters. This is the turn-on time.

Changing performance is one more essential area. The critical price of rise of off-state voltage (dv/dt) is necessary. This shows how quick the voltage throughout the gadget can change before it could turn on unintentionally. A greater dv/dt rating is much better. The tool additionally has restrictions on exactly how promptly the current can increase when it activates (di/dt). Surpassing this can harm the gadget.

Thermal requirements are important for dependability. The maximum operating junction temperature level must not be surpassed. The thermal resistance value shows how efficiently warm moves from the silicon chip inside to the instance, and then to the heatsink. Lower thermal resistance suggests much better air conditioning. Great thermal management guarantees long life and stable operation.

(Light Triggered Thyristors)

Applications of Light Triggered Thyristors

Light caused thyristors activate making use of light, not electrical power. This makes them unique. They are important where high voltage exists. They are important where electric noise is high. High voltage straight current transmission utilizes them. These systems move big power over long distances. Light triggering supplies excellent electrical isolation below. Control circuits remain secure from the main high voltage. This seclusion is critical for security. It is vital for reliable procedure. Noise can not easily create incorrect triggering either.

Industrial electric motor drives benefit too. Huge electric motors need precise control. They typically run in electrically noisy factories. Traditional triggering can misfire as a result of this sound. Light triggering neglects most electrical interference. This causes smoother electric motor operation. It protects against unexpected closures. It prolongs devices life. Reliability boosts dramatically.

Clinical imaging tools depends on them. X-ray machines require sharp, regulated pulses. High voltage pulses create the X-rays. Timing should be precise. Light triggering makes certain precise pulse control. Electrical isolation secures sensitive client monitoring systems nearby. Safety standards demand this separation.

Scientific research study uses these thyristors. Bit accelerators require substantial power pulses. Blend energy experiments call for similar control. Light triggering takes care of the severe voltages entailed. It synchronizes complex power changing accurately. The seclusion prevents signals from interfering with delicate dimensions.

Specialized power materials utilize them. These materials feed requiring lots like radar or lasers. They operate at very high voltages. Electric noise prevails. Light triggered thyristors take care of the changing reliably. They protect against malfunctions brought on by noise. They streamline the power supply layout by getting rid of complicated seclusion elements. This saves room. This conserves expense.

Company Profile

PDDN Photoelectron Technology Co., Ltd. is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality Light Triggered Thyristors, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of Light Triggered Thyristors

What is a Light Triggered Thyristor (LTT)?
An LTT is a special kind of thyristor. Light turns it on. A short pulse of light aimed at its gate layer makes it conduct electricity. This light pulse comes from a small source like a laser diode or LED.

Why use light instead of electricity for triggering?
Light triggering offers big benefits. It creates complete electrical isolation between the control circuit and the high-power circuit. This isolation improves safety. It also stops electrical noise from interfering with the trigger signal. This is vital in high-voltage systems.

Where are LTTs mainly used?
LTTs are essential in very high-power electronics. You find them in high-voltage direct current (HVDC) transmission systems. They control massive power flows efficiently. They are also used in large industrial motor drives. Some pulsed power systems and specialized medical equipment use them too.

What light source triggers an LTT?
Laser diodes are the most common trigger source. They provide the needed intense, focused light pulse. Sometimes LEDs are used, especially for lower-power LTTs. The light source must match the thyristor’s specific wavelength requirement. This is usually near-infrared light.

Are there downsides to using LTTs?
LTTs need a separate light source and its driver circuit. This adds complexity compared to electrically triggered thyristors. They are also more sensitive to light. Ambient light or stray light must be blocked carefully. They are generally more expensive than standard thyristors. Their use is justified where electrical isolation is critical.
