Buchholz relay QJ25 QJ40 QJ80 for oil transformer China Manufacturer

Buchholz relay QJ25 QJ40 QJ80 for oil transformer

$65-79 /Piece/Pieces

Payment Type:	L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union,D/A
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
PDDN-Min. Order:	1 Piece/Pieces
PDDNansportation:	Ocean,Land,Air,Express,Express

Sample:

$70.00 /Piece/Pieces, 1 Piece/Pieces (Max. Order)
Buy Sample

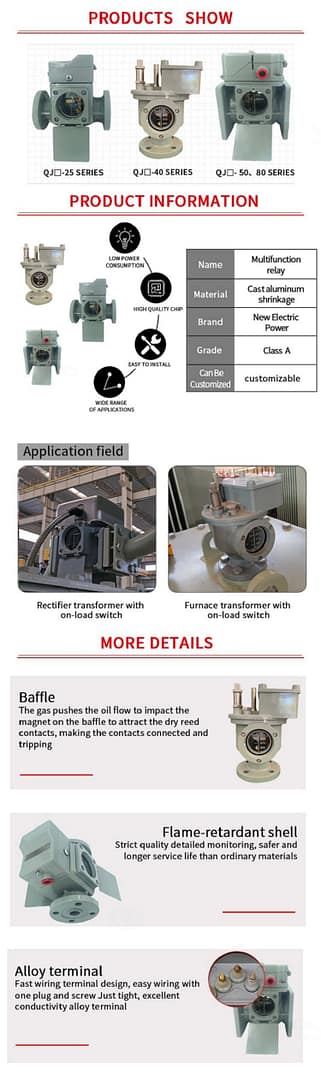

Product Description

The gas Relay is a main protection device for internal faults of the immersed Transformer and oil immersed on the load Tap Changer. The gas relay (gas relay) is installed on the connecting pipeline between the transformer and the oil conservator. When the internal fault of the transformer causes oil decomposition to produce gas or oil flow impulse, the contact of the gas relay will act to connect the specified control circuit and send a signal in time or automatically cut off the transformer.

Maintenance

1. The relay shall undergo appearance inspection and reliability inspection of the signal circuit and trip circuit once a year.

2. The relay in operation shall be uncovered once every two years for internal structure and action reliability inspection.

3. The power frequency withstand voltage test shall be carried out for the operated relay every five years.

The method of selecting a transformer gas relay is relatively simple, which is to look at the diameter of the connecting pipeline between the transformer body and the transformer oil storage tank. If the diameter of the pipeline is 50mm, choose the QJ-50 gas relay; If the diameter of the pipeline is 80mm, choose the QJ-80 gas relay. The numbers in the model only represent the design serial number.

Product Attributes

Brand: PDDN

Principle: Electromagnetic Relay

Use: Auto, Protective

Size: Miniature

Protection Features: Sealed

Contact Load: Low Power

Product Name: Buchholz Relay

Product Use: Oil immersed transformer

Shell Material: aluminium / iron

Voltage: 220v

Working Temperature: -30℃-+95℃

Nominal Diameter: 25/40/50/80CM

Connection Form: Flange

Product Characteristics: Isolation seal

Number Of Power Supply Phases: Polyphase

Place Of Origin: China

Customized: Support

Packaging & Delivery

PDDN-Selling Units	:	Piece/Pieces
PDDN-Single package size	:	28cm*24cm*30cm
PDDN-Single gross weight	:	5~7kg
Package Type	:	PDDN-Carton
Picture Example	:
