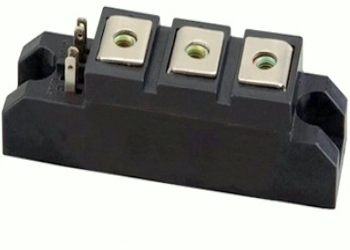

How does a dual diode module work?

In electronic engineering, a diode is an essential semiconductor component that conducts electricity in one direction. As the name suggests, the dual diode module is composed of two diodes. This module is widely used in various electronic equipment, such as power rectification, signal processing, etc. Understanding how dual diode modules work is essential to understanding their applications and design. This article will detail the working principle, characteristics, and applications of dual diode modules.

Working principle of dual diode module

Dual diode modules usually consist of two diodes connected in series or parallel. When connected in series, the cathodes of the two diodes are connected, and the anodes are connected to each end of the circuit. When connected in parallel, the two diodes' anodes are connected, and the cathodes are connected to each end of the circuit.

• Series connection

Two diode cathodes are connected to form a common cathode in a series connection. When voltage is applied between the anode and the common cathode, current flows to the cathode. Since the two diodes are connected in series, the current will be distributed evenly across both diodes. When current passes through two diodes, each diode rectifies according to its characteristics.

• Parallel connection

In a parallel connection, the two diodes' anodes are connected to form a common anode. When voltage is applied between the cathode and the common anode, current flows from the cathode to the anode. Since the two diodes are connected in parallel, the current will be distributed evenly across both diodes. Each diode will be rectified according to its characteristics. Still, it is essential to note that this connection method is not usually used in rectification applications because diodes connected in parallel cannot effectively control the direction of the current.

Characteristics of dual diode modules

Dual diode modules have the following features:

1)Rectification function: The dual diode module can serve as a rectifier to convert alternating current into continuous current. This is due to the unidirectional conductivity of the diode, which allows current to flow in only one direction. By changing the input voltage's polarity, the current's direction can be changed, thereby achieving the rectification function.

2)Balancing of voltage and current: Since the two diodes in a dual diode module usually have the same characteristics, they balance the voltage and current in the circuit. Since the cathodes of the two diodes are connected in a series connection, they share the same voltage. In a parallel connection, since the two diodes' anodes are connected, they share the same current. This balance helps improve the stability and reliability of the circuit.

3)Temperature stability: Since both diodes in a dual-diode module have the same temperature coefficient, their performance is less affected by temperature changes. This stability is essential for applications that require precise control of circuit performance.

4)High reliability: Since the two diodes in a dual diode module can share the voltage and current load in the circuit, they last longer than a single diode. This high reliability makes dual diode modules the first choice for critical applications.

Application of dual diode modules

Dual diode modules are widely used in many fields, such as power supply design, signal processing, motor control, etc. Here are a few specific application examples:

1)Power supply design: In power supply design, dual diode modules are often used in rectifiers to convert AC power to DC power. This application ensures stable operation of the power supply in the circuit while preventing noise interference on the power line. By using dual diode modules, the efficiency of the power supply can be improved.

2)Signal processing: In signal processing, dual diode modules can be used for half-wave rectification or full-wave rectification. This application converts AC signals into DC signals for subsequent processing and analysis. In addition, the dual diode module can also be used to suppress noise and interference and improve the signal-to-noise ratio.
