Oil immersed transformer remain the backbone of global power systems due to their high reliability, excellent insulation performance, and cost efficiency. However, the industry is undergoing a major shift—from traditional mineral oil insulation toward eco-friendly materials, intelligent monitoring, and digital twin-based asset management.

If you’re a utility company, EPC contractor, or industrial power user, understanding these trends can directly impact your project cost, 安全性, and long-term ROI.

🏭 What Is an Oil Immersed Transformer?

An oil immersed transformer uses transformer oil as both insulation and cooling medium.

Core Components:

• Core: Silicon steel laminations (low loss, high efficiency)
• Windings: Copper or aluminum (LV foil / HV layered)
• Insulation System: Oil + cellulose paper
• Cooling System: Natural or forced oil circulation

Key Advantages:

✔ High dielectric strength
✔ Excellent heat dissipation
✔ Long service life (20–40 years)
✔ Proven technology worldwide

⚠ Limitations of Traditional Mineral Oil Transformers

Despite their maturity, mineral oil transformers face serious challenges:

• ❌ Low biodegradability (<30%)
• ❌ Fire risk (flash point ~150°C)
• ❌ Environmental pollution concerns
• ❌ Aging under heat, oxygen, and moisture

👉 This is why global markets are shifting toward next-generation insulation systems.

🌱 Natural Ester Transformer Oil: The Future Standard

Natural ester oil is rapidly becoming the preferred solution for modern transformer projects.

Key Benefits:

✔ 100% biodegradable
✔ Flash point ~2× higher than mineral oil
✔ Self-extinguishing (fire-safe)
✔ Extends insulation paper life

Real Industry Milestone:

• Up to 765kV / 250MVA ester-filled transformers already deployed

👉 This proves ester oil is no longer experimental—it is grid-ready.

⚠ Challenges & Engineering Solutions

👉 Conclusion:
Natural ester is not just greener—it’s becoming technically competitive.

🔬 Transformer Aging & Failure Mechanisms

Understanding transformer aging is critical for preventing failures and reducing downtime.

1. Thermal Aging (Main Factor)

• Every +6°C = lifetime reduced by 50%
• Hotspot limit: ≤140°C

👉 Overheating = fastest way to destroy a transformer

2. Electrical Faults

• Partial discharge (PD)
• Arc faults

Key gas indicators:

• C₂H₂ (Acetylene) → Arcing
• C₂H₄ (Ethylene) → Overheating

3. Oil-Paper Degradation

👉 DP < 200 = insulation failure risk

📊 Smart Transformer Monitoring Technologies

🔍 1. DGA (Dissolved Gas Analysis)

Most important diagnostic method:

• Detects internal faults early
• Identifies fault type

👉 Trend:
Online DGA + AI = real-time fault prediction

🔬 2. Furfural Analysis

• Measures insulation paper aging
• Critical for lifetime assessment

📈 3. FDS (Frequency Domain Spectroscopy)

• Non-destructive
• High accuracy

👉 Limitation: Cannot detect hotspot aging directly

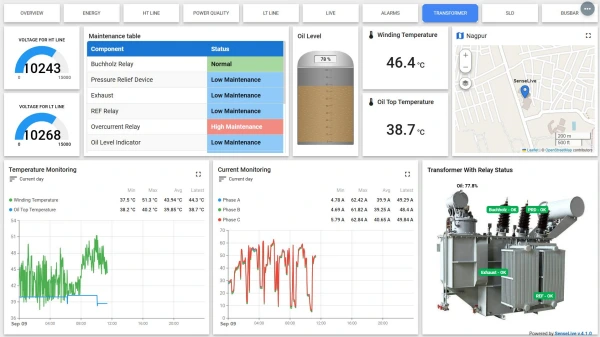

🌡 4. Fiber Optic Temperature Monitoring

• Real-time hotspot detection
• Enables dynamic loading

👉 Result:
Higher efficiency + longer lifespan

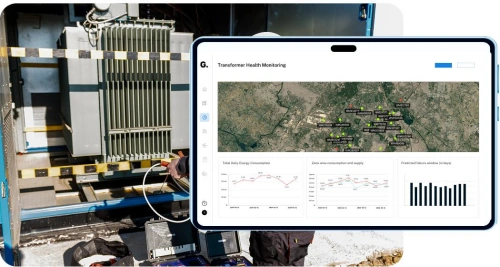

🤖 Digital Twin Transformers: The Game Changer

Digital twin technology is redefining transformer management.

What It Does:

✔ Real-time condition mapping
✔ Predictive maintenance
✔ Remaining life estimation

👉 Biggest advantage:
Solves the problem of “invisible internal faults”

🚀 Why This Matters for Your Projects

If you’re working on:

• Power grid expansion
• Solar / renewable projects
• Industrial power systems
• Africa / Middle East infrastructure

👉 Choosing the right transformer directly impacts:

• Project safety
• Maintenance cost
• Service life
• ROI

💼 How to Choose the Right Transformer

Key Factors:

✔ Voltage level (10kV–500kV)
✔ Capacity (kVA / MVA)
✔ Cooling method (ONAN / ONAF)
✔ Insulation type (Mineral vs Ester)
✔ Ambient conditions (desert / high temp / humidity)
✔ Monitoring system (optional but recommended)

📩 Get Your Custom Transformer Solution

We provide:

✔ Oil immersed power transformers
✔ Solar step-up transformers
✔ Custom solutions for harsh environments (Africa / 中東)
✔ Full export support (EXW / FOB / CIF)

👉 What you get:

• Free technical consultation
• Fast quotation within 24 hours
• Optimized design for your project
• Competitive factory price
