When purchasing a transformer for a power project, most buyers focus heavily on the main unit—capacity, voltage rating, Ofkillungsmethod, and winding material.

That makes sense. Schliisslech, the transformer itself is the heart of the system.

Allerdéngs, experienced buyers know something equally important:

Many transformer failures are caused not by the transformer body, but by neglected accessories.

A missing alarm, inaccurate oil level reading, poor insulation performance, or ineffective pressure protection can all lead to major failures, expensive downtime, and unexpected maintenance costs.

In large-scale power projects, choosing reliable transformer accessories is not optional—it is essential.

In this guide, we’ll walk through the 7 most important transformer Accessoiren every buyer should inspect before placing an order.

1. Buchholz Relay – The First Line of Internal Fault Protection

The Buchholz Relay is one of the most critical protection devices used in oil-immersed transformers.

Installed between the transformer tank and conservator tank, its main function is to detect internal faults such as:

• Insulation failure
• Overheating
• Intern arcing
• Oil decomposition

When faults occur, gas accumulates inside the relay, triggering alarms or trip signals.

What Buyers Should Check:

• Material quality
• Sensitivity and accuracy
• Alarm/trip reliability
• Compliance with IEC standards

A poor-quality Buchholz Relay may fail to detect early transformer faults, leading to severe damage.

2. Oil Level Indicator – Critical for Cooling Performance

Transformer oil performs two major functions:

• Isolatioun
• Ofkillung

If oil level drops too low, transformer cooling performance decreases significantly.

That can quickly result in overheating.

An Oil Level Indicator allows operators to monitor oil level inside the conservator tank in real time.

What Buyers Should Check:

• Reading accuracy
• Weather resistance
• Korrosiounsbeständegkeet
• Visibility under outdoor conditions

For outdoor transformers operating in hot or humid climates, durability is especially important.

Even a small reading error can create major operational risks.

3. Pressure Relief Device – Protection Against Tank Explosion

During abnormal operating conditions, pressure inside a transformer tank may rise rapidly.

Common causes include:

• Internal short circuit
• Flashover
• Severe overheating

Without pressure release protection, excessive internal pressure can damage the tank—or worse, cause an explosion.

This is where the Pressure Relief Device becomes essential.

Its purpose is simple:
release excessive pressure before serious damage occurs.

What Buyers Should Check:

• Pressure release sensitivity
• Fast response speed
• Mechanical durability
• Sealing performance

This small accessory plays a huge role in transformer safety.

4. Silica Gel Breather – Moisture Control Matters

Moisture is one of the biggest enemies of transformer insulation.

When moisture enters transformer oil, insulation performance drops.

That increases the risk of:

• Deelweis Entladung
• Dielectric breakdown
• Reduced service life

A Silica Gel Breather prevents moisture from entering the transformer through air exchange.

It absorbs moisture before external air reaches the oil conservator.

What Buyers Should Check:

• Silica gel quality
• Moisture absorption efficiency
• Housing material
• Glass or transparent chamber quality

In humid or coastal environments, choosing a high-quality breather becomes even more important.

Many buyers underestimate this accessory—until insulation problems appear.

5. Transformer Bushing – One of the Most Important Insulation Components

The Transformer Bushing allows current to pass safely through grounded transformer tanks.

It is both an electrical and mechanical component.

Poor-quality bushings are among the most common causes of transformer failure.

Typical problems include:

• Knacken
• Leakage
• Flashover
• Insulation failure

What Buyers Should Check:

• Voltage class
• Creepage distance
• Insulation material
• Porcelain or polymer design

Selecting the right bushing directly affects transformer reliability and operational safety.

Never compromise on bushing quality.

6. Transformer Thermometer – Temperature Monitoring Saves Equipment

Heat is one of the main causes of transformer aging.

Continuous temperature monitoring helps prevent unexpected failures.

Common thermometer types include:

• Oil temperature indicator
• Winding temperature indicator

These devices allow operators to monitor transformer conditions and detect overheating early.

What Buyers Should Check:

• Temperature accuracy
• Sensor stability
• Alarm system integration
• Long-term reliability

Reliable temperature monitoring improves maintenance planning and reduces downtime.

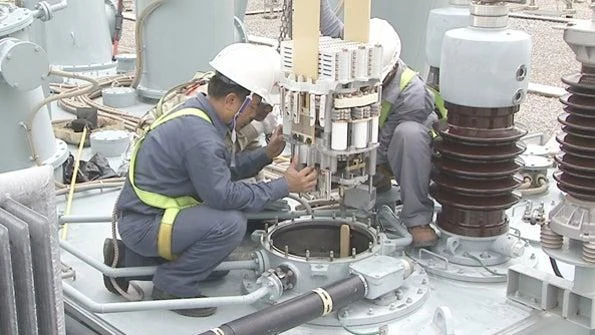

7. Tap Changer – Essential for Voltage Regulation

Voltage fluctuations are common in power systems.

A Tap Changer allows the transformer to adjust voltage output based on operating requirements.

Main types include:

• Off-load tap changer
• On-load tap changer

This component directly affects voltage stability and system performance.

What Buyers Should Check:

• Switching reliability
• Contact quality
• Mechanical lifespan
• Maintenance requirements

A reliable tap changer ensures stable power delivery and better transformer performance.

Final Thoughts

When buying a transformer, many project teams focus only on major specifications.

But experienced buyers know the truth:

Small accessories often determine long-term transformer reliability.

The right transformer accessories help improve:

• Safety
• Efficiency
• Service life
• Maintenance cost control

In many power projects, the difference between stable operation and costly downtime comes down to accessory quality.

That’s why choosing a reliable transformer accessories supplier matters just as much as choosing the transformer itself.

Before placing your next transformer order, make sure these seven accessories are fully evaluated.

Because in power systems, reliability starts with every component.
