Description


📌 Product Overview

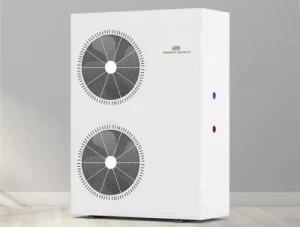

The Monoblock Air Source Heat Pump integrates all hydraulic components into one outdoor unit, making installation extremely simple and reducing labor costs.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Heating Capacity | 8kW / 12kW / 16kW / 20kW |
| Power Supply | 220V / 380V |
| Refrigerant | R410A / R32 |
| Max Water Temp | 60°C |
| COP | 3.8 – 4.5 |
| Protection | IPX4 |
| Defrosting | Intelligent auto defrost |
🌟 Key Advantages
- 🔧 All-in-One Design – no indoor hydraulic module needed
- 🔧 Easy Installation – plug-and-play, reduce installation cost by 30%
- 🔧 Stable Performance – factory-tested complete system
- 🔧 Compact Structure – space-saving
🏢 Applications
- Residential houses
- Small hotels
- Clinics
- Office buildings
🌍 Export Market Insights
- Best-selling in Southern Europe, Middle East, Southeast Asia
- Ideal for regions with limited technical installation teams
- Popular in retrofit projects (replace boiler systems)
