Transformer Oil Level Gauge: Complete Buying Guide for Power Transformer Projects

A transformer oil level gauge may seem like a small component compared with the transformer itself, but it plays a critical role in monitoring the condition of the insulating oil and protecting valuable power assets.

For transformer manufacturers, utilities, EPC contractors, and maintenance companies, selecting the right oil level gauge is not simply a matter of choosing a size or price. Factors such as conservator design, alarm requirements, environmental conditions, and long-term reliability must all be considered.

This guide explains everything buyers need to know before purchasing a transformer oil level gauge, including types, specifications, common purchasing mistakes, and project considerations.

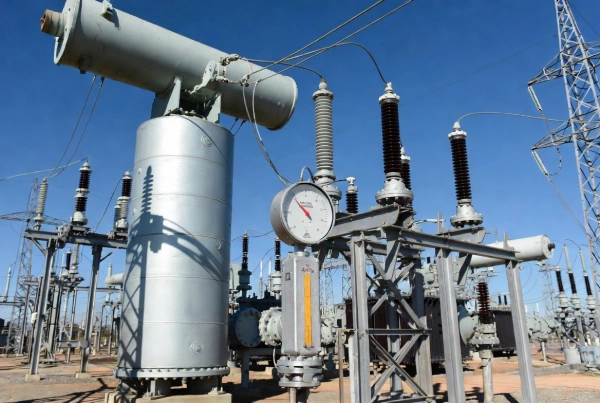

What Is a Transformer Oil Level Gauge?

A transformer oil level gauge, also known as a transformer oil level indicator or conservator oil level gauge, is installed on the conservator tank of an oil-immersed transformer to indicate the oil level.

Its primary functions include:

• Monitoring oil volume inside the conservator
• Detecting abnormal oil loss
• Supporting preventive maintenance
• Providing high and low oil level alarms
• Enabling remote monitoring in substations

Because transformer oil serves both insulation and cooling functions, maintaining the correct oil level is essential for safe operation.

Why Is Oil Level Monitoring Important?

A drop in transformer oil level may indicate:

• Sceitheadh ​​ola
• Seal failure
• Conservator problems
• Temperature-related abnormalities
• Internal transformer faults

If left undetected, low oil levels can result in:

• Reduced insulation performance
• Overheating
• Accelerated insulation aging
• Increased maintenance costs
• Unexpected transformer outages

For this reason, utilities and transformer manufacturers consider oil level gauges an essential monitoring device rather than a simple accessory.

Types of Transformer Oil Level Gauges

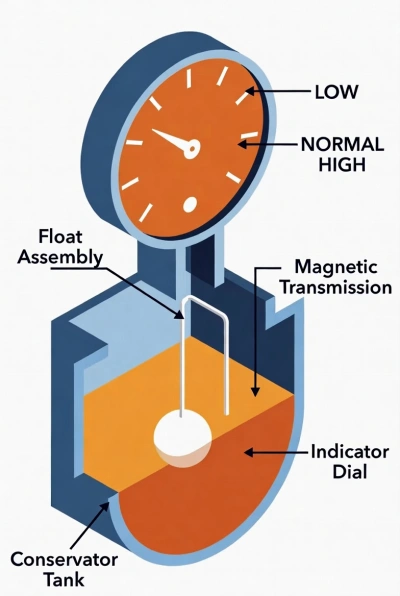

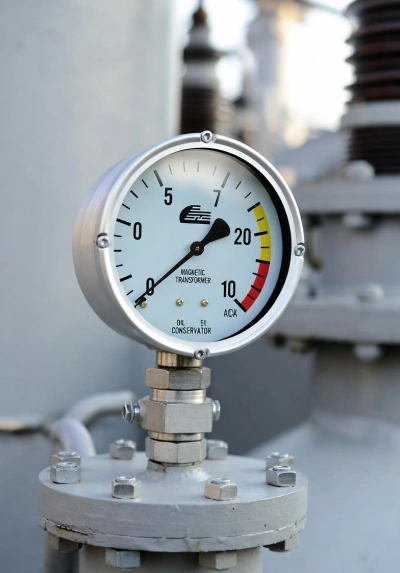

Magnetic Oil Level Gauge

The most common solution used in modern transformers.

Advantages:

• Reliable operation
• Excellent sealing
• Long service life
• Low maintenance

Typical applications:

• Trasfhoirmeoirí cumhachta
• Claochladáin dáileacháin
• Renewable energy substations

Oil Level Gauge with Alarm Contacts

Suitable for projects requiring automatic monitoring.

Features:

• High-level alarm
• Low-level alarm
• Remote indication
• SCADA compatibility

Typical applications:

• Utility substations
• Industrial power systems
• Smart grid projects

Customized Oil Level Gauge

Designed for special conservator configurations.

Common customization options:

• Dial markings
• Float arm length

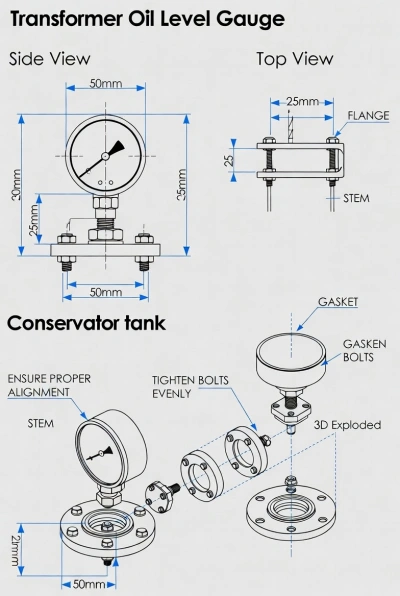

• Flange dimensions
• Contact configurations
• Customer branding

Key Specifications Buyers Should Confirm Before Ordering

Many quotation delays occur because critical technical information is missing.

Before sending an RFQ, prepare the following details:

Providing these details helps suppliers recommend the correct model quickly and accurately.

How to Choose the Right Transformer Oil Level Gauge

1. Match the Conservator Design

The gauge must be compatible with the conservator dimensions and mounting arrangement.

Incorrect matching may result in inaccurate readings.

2. Determine Alarm Requirements

Many substations require:

• High oil level alarm
• Low oil level alarm
• Remote monitoring capability

Selecting these options during procurement is more economical than upgrading later.

3. Consider Environmental Conditions

For outdoor installations, buyers should evaluate:

• Ambient temperature
• Humidity
• UV exposure
• Dust levels
• Corrosive environments

Products with higher protection ratings generally offer better long-term reliability.

4. Evaluate Supplier Experience

When comparing suppliers, ask:

• How many years have they produced transformer accessories?
• Do they export internationally?
• Can they provide drawings?
• Do they offer OEM services?
• Can they provide testing reports?

Technical support is often as important as the product itself.

5 Common Mistakes When Purchasing Transformer Oil Level Gauges

Mistake #1: Selecting Based on Price Alone

The lowest-priced option may not provide the best value.

Inferior products often suffer from:

• Weak magnetic coupling
• Poor sealing
• Contact failures
• Short service life

The cost of replacing a failed gauge is usually much higher than the initial price difference.

Mistake #2: Providing Incomplete Technical Information

Many buyers only provide the conservator diameter.

Mar sin féin, suppliers also need information such as:

• Mounting location
• Float travel distance
• Alarm requirements

Incomplete specifications can lead to incorrect quotations and delivery delays.

Mistake #3: Ignoring Alarm Contact Requirements

Projects increasingly require integration with monitoring systems.

Purchasing a standard gauge without alarm contacts may create additional modification costs later.

Mistake #4: Overlooking Environmental Conditions

A gauge that performs well indoors may not withstand:

• Coastal environments
• Desert climates
• High humidity
• Extreme temperatures

Material selection is critical for long-term performance.

Mistake #5: Choosing a Supplier Without Transformer Industry Experience

General instrument manufacturers may not fully understand transformer conservator requirements.

Working with a specialized transformer accessory supplier typically reduces technical risks.

Project Example

Substation Upgrade Project in Southeast Asia

A contractor involved in a transmission substation upgrade required customized magnetic oil level gauges for multiple power transformers.

Project requirements included:

• Dual alarm contacts
• Outdoor installation
• IP65 protection
• Customized dial scales

The gauges were manufactured according to project specifications and delivered within the agreed schedule.

The project demonstrated the importance of confirming technical requirements early in the procurement process to avoid installation issues.

Frequently Asked Questions

What is the normal oil level in a transformer conservator?

The normal oil level varies depending on transformer design and operating temperature. Manufacturers usually indicate the acceptable range on the conservator gauge dial.

What causes transformer oil level to decrease?

Common causes include oil leakage, gasket failure, temperature changes, maintenance activities, and conservator-related issues.

Can a transformer operate with a low oil level?

Operating with insufficient oil may reduce cooling efficiency and insulation performance, potentially leading to equipment damage.

How often should oil level gauges be inspected?

Visual inspections are typically performed during routine transformer maintenance schedules, while alarm contacts should be tested periodically.

Can oil level gauges be customized?

Tá. Many manufacturers offer customized dimensions, contact configurations, dial markings, and OEM branding.

Why Choose a Professional Transformer Oil Level Gauge Supplier?

A reliable supplier provides more than just a product.

Key advantages include:

• Technical consultation
• Engineering support
• Drawing confirmation
• Quality control
• OEM customization
• Export documentation assistance

These services help ensure smooth procurement and successful project execution.
