How to Choose a Transformer Tap Changer: A Complete Buyer’s Guide for Utilities, EPC Contractors and Transformer Manufacturers

Why Tap Changers Matter More Than Most Buyers Think

When purchasing a transformer, many buyers focus on power rating, voltage class, cooling method, and winding material. তবে, experienced utility engineers know that one component often determines long-term transformer reliability: দ ট্যাপ চেঞ্জার.

Industry experience shows that a significant portion of transformer operational issues are related to tap changer failures. Poor contact quality, incorrect selection, inadequate maintenance, or unsuitable operating conditions can lead to voltage instability, অতিরিক্ত গরম, unexpected outages, and costly repairs.

Whether you are a utility company, EPC contractor, transformer manufacturer, or industrial facility owner, choosing the right transformer tap changer is critical for ensuring stable voltage regulation and maximizing transformer service life.

This guide explains everything buyers need to know before purchasing a transformer tap changer.

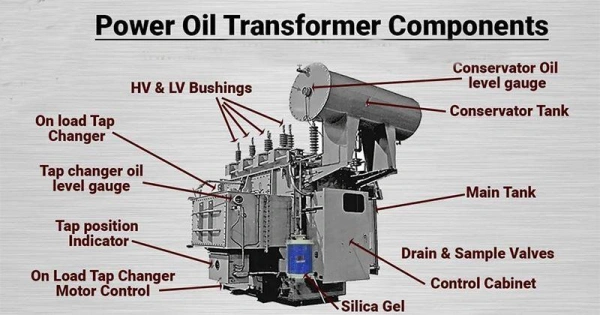

What Is a Transformer Tap Changer?

A transformer tap changer is a device used to adjust the transformer’s turns ratio, allowing the output voltage to be increased or decreased as system conditions change.

Power grids are rarely stable. Load fluctuations, renewable energy integration, seasonal demand changes, and transmission losses can all affect voltage levels.

The tap changer compensates for these variations by selecting different winding taps.

Without proper voltage regulation:

• Motors may overheat
• Electrical equipment can fail prematurely
• Power quality deteriorates
• Energy losses increase
• Grid stability decreases

This is why tap changers are considered one of the most critical transformer accessories.

Understanding the Two Main Types of Tap Changers

1. Off-Circuit Tap Changer (OCTC)

Also known as:

• Off Load Tap Changer
• No Load Tap Changer
• De-Energized Tap Changer

This type requires the transformer to be completely disconnected before changing tap positions.

Typical Applications

• Distribution transformers
• Pole-mounted transformers
• Rural substations
• Industrial distribution systems

সুবিধা

✔ Lower cost

✔ Simple structure

✔ Minimal maintenance

✔ Long service life

Limitations

✖ Transformer shutdown required

✖ Manual operation

✖ No real-time voltage regulation

2. On Load Tap Changer (ওএলটিসি)

An OLTC can change tap positions while the transformer remains energized and supplying power.

This technology is essential for medium-voltage and high-voltage power transformers.

Typical Applications

• Utility substations
• Power generation plants
• নবায়নযোগ্য শক্তি প্রকল্প
• Industrial power systems
• Data centers

সুবিধা

✔ Continuous voltage regulation

✔ No service interruption

✔ Automatic operation

✔ Improved power quality

Limitations

✖ Higher initial investment

✖ More complex maintenance

✖ More moving components

OLTC vs OCTC: Which One Should You Choose?

General Recommendation

For distribution transformers below 2500kVA, OCTC is often sufficient.

For utility substations, নবায়নযোগ্য শক্তি প্রকল্প, and industrial power transformers, OLTC is usually the preferred choice.

7 Critical Questions Every Buyer Should Ask Before Ordering

1. What Is the Transformer Voltage Class?

Tap changer selection starts with voltage level.

Common transformer voltage classes include:

• 10কেভি
• 11কেভি
• 20কেভি
• 33কেভি
• 35কেভি
• 66কেভি
• 110কেভি
• 132কেভি
• 220কেভি

Incorrect voltage matching can result in insulation failure and equipment damage.

2. What Is the Rated Current?

The tap changer must safely handle transformer current.

Common ratings:

Always verify rated current rather than selecting solely based on transformer capacity.

3. How Many Tap Positions Are Required?

Common tapping ranges include:

• ±2 × 2.5%
• ±5%
• ±8 × 1.25%
• ±10%

More tap positions allow finer voltage control but increase complexity.

For renewable energy projects where voltage fluctuations are frequent, additional tap positions may be beneficial.

4. Indoor or Outdoor Installation?

Environmental conditions directly affect tap changer performance.

Consider:

Outdoor Applications

• UV exposure
• বৃষ্টি
• Salt spray
• ধুলো

Indoor Applications

• Temperature control
• Humidity levels
• বায়ুচলাচল

Buyers in coastal regions should pay special attention to corrosion resistance.

5. How Frequently Will Switching Occur?

This is one of the most overlooked questions.

For OLTC systems:

• Some transformers switch only a few times per day.
• Others switch hundreds of times daily.

Higher switching frequency requires:

• Better contact materials
• More durable mechanisms
• Enhanced maintenance planning

6. What Standards Must Be Met?

Most international projects require compliance with:

• আইইসি 60214
• আইইসি 60076
• IEEE Standards
• ANSI Standards

Always request:

• Type Test Reports
• Routine Test Reports
• Quality Certificates

Failure to verify standards can delay project approvals.

7. What Is the Expected Service Life?

A quality tap changer should provide:

• Long mechanical life
• Stable electrical performance
• Low maintenance requirements

Ask suppliers for:

• Mechanical operation life
• Electrical operation life
• Recommended maintenance intervals

Lifecycle cost is often more important than purchase price.

Common Tap Changer Problems That Cost Buyers Money

Contact Wear

Electrical arcing gradually erodes contacts.

Consequences:

• Increased resistance
• Local overheating
• Reduced efficiency

Carbon Deposits

Switching arcs generate carbon particles.

Results include:

• Oil contamination
• Reduced insulation strength
• Increased maintenance frequency

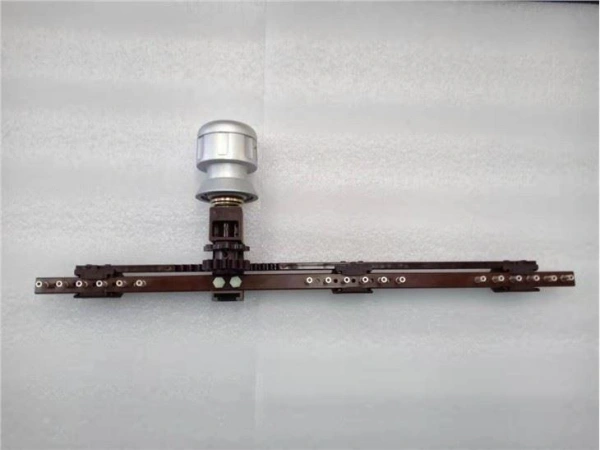

Drive Mechanism Failure

Mechanical components may wear over time.

Potential issues:

• Incomplete switching
• Position errors
• Operational failure

Insulation Deterioration

Aging insulation can lead to:

• Flashover
• Partial discharge
• Catastrophic failure

Regular maintenance helps prevent these problems.

Supplier Evaluation Checklist

Before placing an order, ask suppliers the following questions:

Technical Capability

✓ Do you manufacture the tap changer yourself?

✓ Can you provide OEM services?

✓ Do you offer technical drawings?

✓ Are custom voltage ratings available?

Quality Assurance

✓ Factory testing available?

✓ IEC compliance?

✓ Third-party inspection support?

✓ Traceable production records?

After-Sales Support

✓ Spare parts availability?

✓ Installation guidance?

✓ Technical support?

✓ Warranty coverage?

Why Cheap Tap Changers Often Become Expensive

Many procurement teams focus heavily on purchase price.

তবে, a tap changer failure can result in:

• Transformer shutdown
• Emergency maintenance
• Production losses
• Customer complaints
• Replacement costs

A slightly higher-quality tap changer often delivers a significantly lower total ownership cost over the transformer’s lifetime.

Future Trends: Smart Tap Changers

As power systems become more intelligent, smart tap changers are gaining popularity.

Modern systems may include:

• দূরবর্তী পর্যবেক্ষণ
• Real-time diagnostics
• Predictive maintenance
• SCADA integration
• Digital position monitoring

These technologies help reduce downtime and improve grid reliability.

Looking for Reliable Transformer Tap Changers?

At লুওয়াং দাতাং এনার্জি টেকনোলজি কো., লিমিটেড., we supply high-quality transformer accessories for power utilities, transformer manufacturers, EPC contractors, and industrial projects worldwide.

Our product range includes:

• On Load Tap Changers (ওএলটিসি)
• Off Load Tap Changers (OCTC)
• বুখোলজ রিলেস
• Oil Level Indicators
• Silica Gel Breathers
• Pressure Relief Devices
• Transformer Bushings
• Transformer Thermometers

Contact our engineering team today for technical support, drawings, pricing, and customized solutions for your transformer projects.
