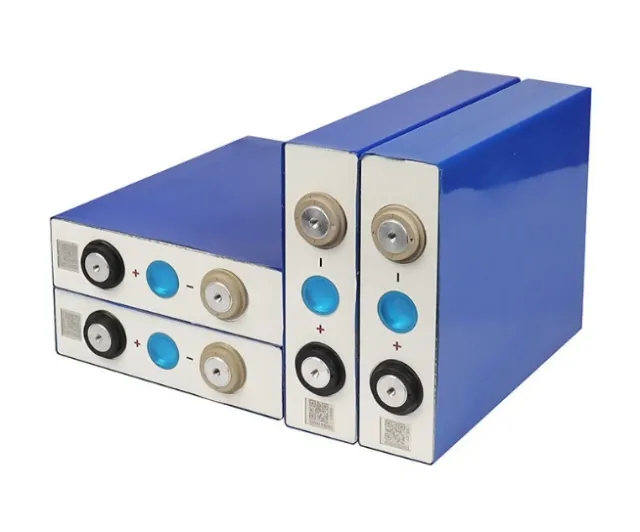

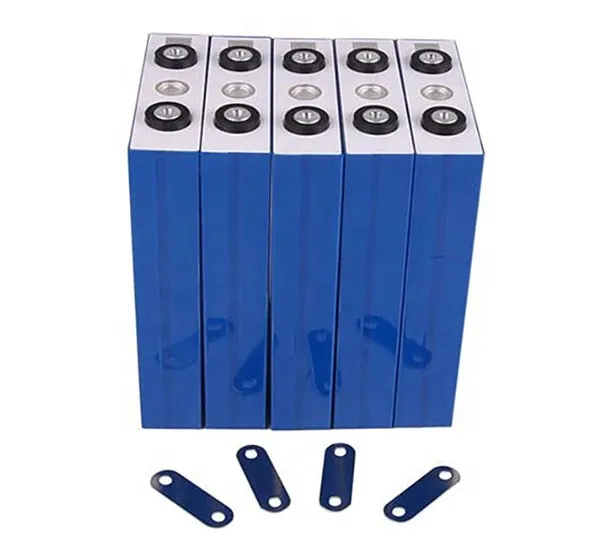

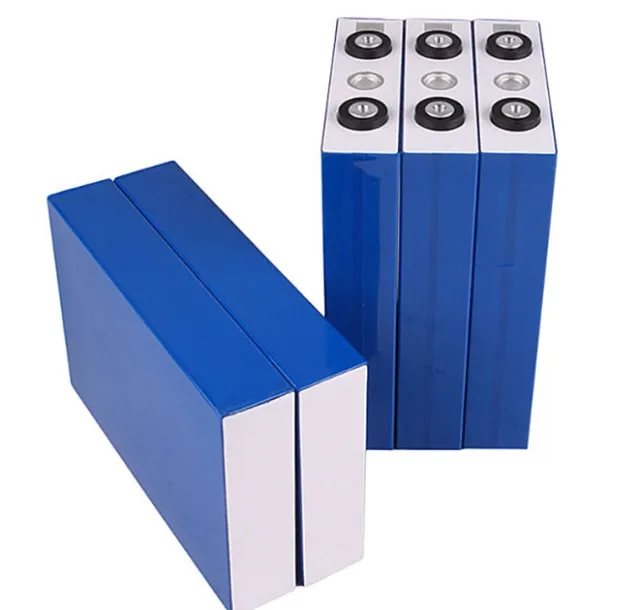

105Ah 3.2V Prismatic LFP Battery Cell
Our 105Ah 3.2V Prismatic LFP Battery Cell is a lithium iron phosphate (LiFePO4) battery cell featuring a durable aluminum casing and a compact rectangular design. With a nominal voltage of 3.2V and a rated capacity of 105Ah, it provides 336Wh of nominal energy for compatible battery packs and energy storage applications.
PRODUCT DETAILSGet a Bulk Quote
Product Overview
Designed for integration into various battery systems, this prismatic LFP cell is suitable for residential energy storage, outdoor energy storage equipment, solar street lighting, electric vehicles, and other compatible applications.
As a battery cell manufacturer, we provide customization and processing services, including capacity grading, cell matching, outer wrap replacement, nickel strip processing, hole drilling, and stud welding, subject to product structure and technical feasibility.
Contact our factory for product specifications, customization options, and bulk order inquiries.
Key Features
1. Stable LFP Battery Chemistry
Built with lithium iron phosphate chemistry, this battery cell is designed for applications requiring stable performance and repeated charge-discharge cycles.
2. 105Ah Rated Capacity
With a rated capacity of 105Ah and a nominal voltage of 3.2V, the cell provides 336Wh of nominal energy for compatible battery packs and energy storage applications.
3. Aluminum Casing
The aluminum casing provides a compact, rigid cell structure suitable for integration into battery modules and battery packs.
4. Up to 3,500 Cycles
The cell is specified with a cycle life of 3,500 cycles. Actual service life depends on operating temperature, charge and discharge rates, depth of discharge, and other test conditions.
5. Flexible Customization Services
We provide capacity grading, cell matching, outer wrap replacement, nickel strip processing, hole drilling, and stud welding to support different battery assembly requirements.
6. Wide Range of Applications
Suitable for residential energy storage, outdoor energy storage systems, solar street lighting, electric vehicles, and other compatible battery-powered equipment.
Technical Specifications
Parameter | Specification |
|---|---|
Product Name | 105Ah Prismatic LFP Battery Cell |
Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
Cell Type | Prismatic Aluminum-Cased Cell |
Nominal Voltage | 3.2V |
Rated Capacity | 105Ah |
Nominal Energy | 336Wh |
Charging Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V |
Standard Charging Current | 0.5C (52.5A) |
Standard Discharge Current | 0.5C (52.5A) |
Maximum Continuous Charging Current | 1C (105A) |
Maximum Continuous Discharge Current | 1C (105A) |
Specified Cycle Life | 3,500 cycles |
Dimensions (L × W × H) | 131 × 37 × 201 mm |
Weight | Approx. 1,980g |
Monthly Self-Discharge Rate | 0.1 (unit and test conditions to be confirmed) |
Customization | Available |
Applications | Energy Storage, Solar Lighting, Electric Vehicles, and More |
Note: Please confirm the dimensional order, self-discharge rate unit, and cycle-life test conditions against the official product datasheet before publication. The charging and discharging current values above are calculated from the stated C-rates and rated capacity.
Customization and Battery Processing Services
We provide customized processing services for prismatic LFP battery cells to help customers meet their specific battery assembly requirements.
- Capacity Grading: Classify cells according to measured capacity.
- Cell Matching: Match cells according to capacity and other agreed electrical parameters.
- Outer Wrap Replacement: Replace or customize the external cell wrapping where applicable.
- Nickel Strip Processing: Process nickel strips according to the agreed assembly design.
- Hole Drilling: Provide customized hole processing where the cell structure permits.
- Stud Welding: Support stud welding according to customer requirements and technical feasibility.
Please provide your drawings, specifications, or sample requirements so our factory can evaluate the feasibility of the requested processing.
Applications
Residential Energy Storage Systems
Suitable for integration into compatible residential battery packs used for storing electricity from solar panels and other power sources.
Outdoor Energy Storage
Can be incorporated into appropriately designed outdoor battery systems for backup power and other energy storage applications.
Solar Street Lighting
Suitable for compatible solar street light battery packs, subject to the required voltage, capacity, operating temperature, and enclosure design.
Electric Vehicles
Can be considered for compatible electric vehicle battery packs after evaluating the required discharge performance, pack configuration, thermal management, and safety requirements.
Customized Battery Packs
Suitable for integration into battery modules and packs designed for specific voltage, capacity, installation, and connection requirements.
Why Choose Our Prismatic LFP Battery Cells?

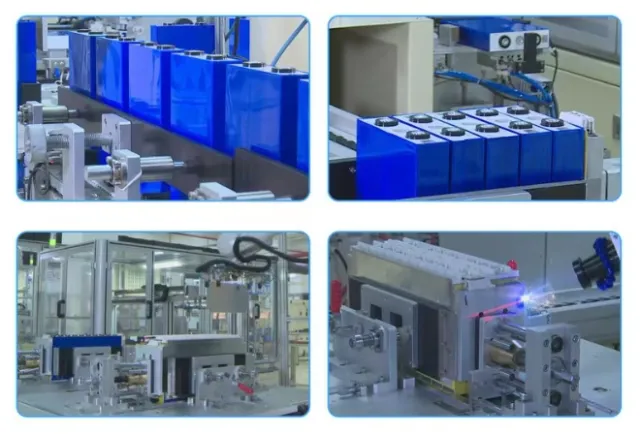

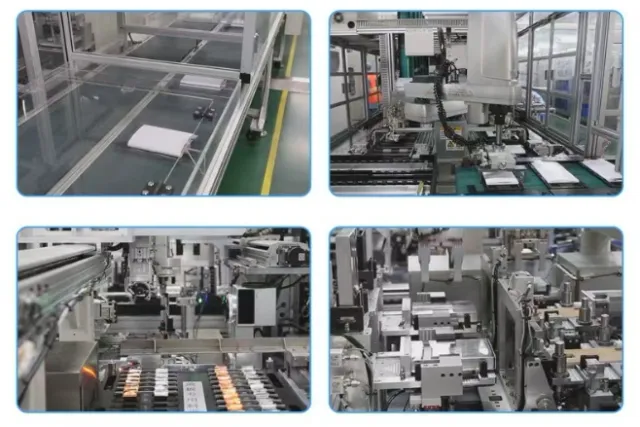

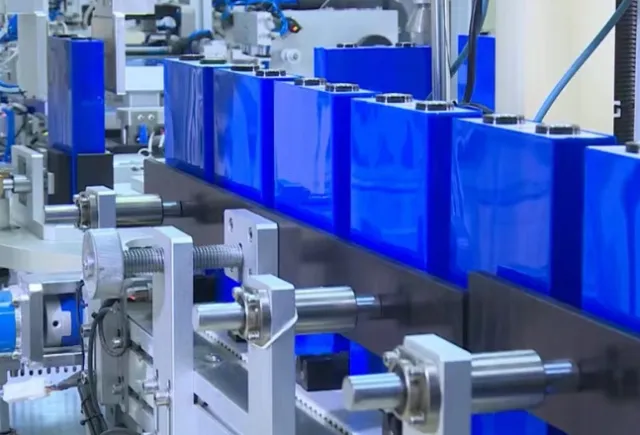

- Factory Manufacturing: Direct access to our battery cell manufacturing capabilities.
- Technical Customization: Processing services tailored to specific assembly requirements.
- Flexible Order Support: Contact us to discuss sample evaluation, product availability, and bulk order quantities.
- Application-Oriented Solutions: Technical communication to help match cell specifications with your battery project requirements.
- Quality Control: Product inspection and cell matching according to the applicable production and testing procedures.
Frequently Asked Questions
1. What is the nominal energy of a 105Ah 3.2V LFP battery cell?
The nominal energy is 336Wh, calculated by multiplying the nominal voltage of 3.2V by the rated capacity of 105Ah.
2. What is the charging voltage of this battery cell?
The specified charging voltage is 3.65V. The charging method and voltage limits should follow the manufacturer's official charging specifications.
3. What is the maximum continuous discharge current?
The specified maximum continuous discharge current is 1C, equivalent to 105A for a 105Ah cell. Actual operating limits depend on the manufacturer's specifications and thermal conditions.
4. How many cycles can this LFP battery cell achieve?
The stated cycle life is 3,500 cycles. The actual cycle life depends on the testing standard, temperature, charge and discharge rates, depth of discharge, and end-of-life criteria.
5. Can you provide customized battery cell processing?
Yes. Available processing options include capacity grading, cell matching, outer wrap replacement, nickel strip processing, hole drilling, and stud welding, subject to technical feasibility.
6. What applications is this battery cell suitable for?
It can be used in compatible residential energy storage systems, outdoor energy storage equipment, solar street lighting, electric vehicles, and customized battery packs.
7. Can I order battery cells in bulk?
Please contact our factory with your required quantity, destination country, intended application, and any special processing requirements. We can evaluate product availability and provide a quotation.
Request a Quote
Looking for 105Ah 3.2V prismatic LFP battery cells for your energy storage or battery manufacturing project?
Contact our factory for pricing, technical documentation, customization options, and bulk order support.
Send us your inquiry today to discuss your battery cell requirements.
