16S1P NMC Battery Module 59.2V 218Ah
High-energy 16S1P NMC battery module (59.2V 218Ah). Supports fast charging to 80% in 45 mins, 2000+ cycles. Ideal for EV conversions, marine & solar storage. Get a quote!
PRODUCT DETAILSGet a Bulk Quote
Product Overview

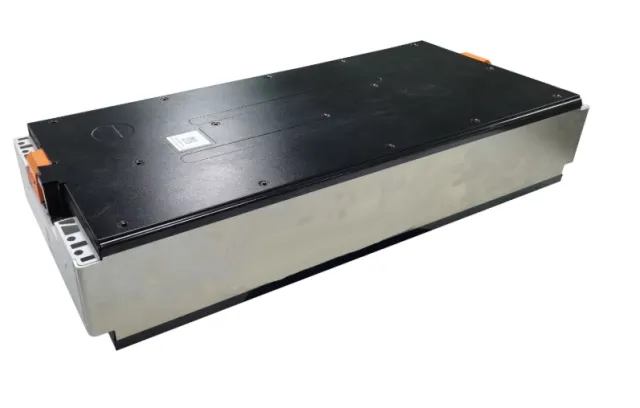

This 16S1P NMC (Nickel Manganese Cobalt) battery module delivers 59.2V and 218Ah capacity, designed specifically for high-demand electric vehicles and energy storage systems. Built with high energy density and a compact footprint (705 × 305 × 130 mm), it ensures extended driving range and reliable power output. Featuring advanced safety designs and a wide operating temperature range, it is an ideal drop-in module for EV retrofits, marine applications, and off-grid power systems.
Key Features
- High Energy Density & Reliable Performance
Provides a high nominal energy capacity in a compact footprint, ensuring prolonged mileage and consistent power output for daily operations. - Excellent Fast Charging Capability
Supports step-up charging, achieving up to 80% State of Charge (SOC) in 45 minutes or less, significantly reducing downtime for high-utilization vehicles. - Wide Temperature Range & Long Lifespan
Operates reliably in extreme conditions (-30°C to 60°C). Offers ≥2000 cycle life (tested within 3%~97% SOC window) for long-term durability and value retention. - Multi-Layer Comprehensive Safety
Includes mechanical, chemical, electrical, and functional safety designs. Features active and passive protection mechanisms to ensure safe operation and system integration.
Technical Specifications
Parameter | Specification |
|---|---|
Chemistry | NMC (Nickel Manganese Cobalt) |
Configuration | 16S1P |
Nominal Voltage | 59.2V |
Rated Capacity | 218Ah (Figure based on 16S1P configuration) |
Cycle Life | ≥ 2000 Cycles |
Charging Method | CCCV (Constant Current Constant Voltage) |
Max Load (Cells) | 16 |
Operating Temperature | -30°C ~ 60°C |
Discharge Temperature | -20°C ~ 55°C |
Charge Temperature | 0°C ~ 55°C |
Storage Temperature | -20°C ~ 45°C |
Dimensions (L×W×H) | 705 × 305 × 130 mm |
Weight | Approx. 59 kg (60 kg gross weight) |
Warranty | 3 Years |
(Note: Specific dimensions and weight are based on the 16S1P configuration. Please verify with our sales team for exact batch specs.)
Applications
Suitable for a wide range of high-power applications:
- Electric Vehicles: EV conversions, low-speed EVs, electric motorcycles, golf carts.
- Marine: Boats, submarines, and marine power systems.
- Specialty Vehicles: Electric wheelchairs, mobility scooters.
- Energy Storage: Solar energy storage systems, UPS (Uninterruptible Power Supplies), and grid power systems.
Popular Build Recommendation: Modules can be configured in series (e.g., 8 modules for ~53kWh, 24 modules for ~60kWh) for specific EV solutions like Nissan Leaf retrofits.
Certifications
Fully tested and compliant with major international standards for safety and transport:
- CE (European Conformity)
- UN38.3 (Safe transport of lithium batteries)
- IEC 62619 (Industrial safety)
- IEC 62133 (Portable battery safety)
- EMC (Electromagnetic Compatibility)
- MSDS (Chemical safety)
- DOC & (EU) 2023/1542 (EU Battery Regulation compliance)
Customization Options (OEM/ODM)
We support flexible customizations to meet your specific project needs (MOQ: 1 piece for evaluation):
- Rated Voltage: Customizable
- Rated Capacity: Customizable
- Battery Chemistry Type: Customizable upon request
- Custom designs, drawing-based production, and sample-based manufacturing are available.
FAQ
Q1: What is the charging protocol for this module?
A: It uses the standard CCCV (Constant Current, Constant Voltage) charging method.
Q2: Can these modules be connected in series or parallel?
A: Yes. Based on your voltage and capacity requirements (e.g., 53kWh or 60kWh systems), multiple modules can be configured in series/parallel. Please contact our engineers for a safe BMS and wiring design.
Q3: What is the lead time for samples and bulk orders?
A: Samples are usually available shortly upon request. For bulk orders, please confirm with our sales team based on your target quantity.
Q4: Do you provide the necessary shipping documents?
A: Yes. We provide UN38.3, MSDS, and other required compliance documents for safe global transport.
Request a Quote
Looking to build your next high-performance EV or storage system?
Send us your target voltage, capacity, application scenario, and quantity. Our technical team will provide the best configuration and a fast quotation.
